AUTO TRANSFER SWITCH 10AMP INC RMCARD205

AUTO TRANSFER SWITCH 10AMP INC RMCARD205

AUTO TRANSFER SWITCH 10AMP INC RMCARD205

Product Overview

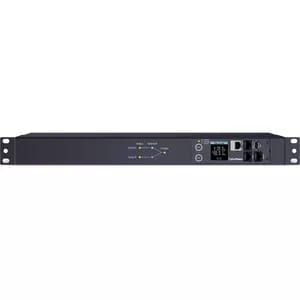

CyberPower PDU44004 Modular PDU - Switched - IEC 60320 C14 - 12 x IEC 60320 C13 - 15 A - 230 V AC Output - 1U Network (RJ-45) - Horizontal - Rack-mountable

Ensure continued operation of critical devices with the CyberPower PDU44004 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44004 is protected by a three-year limited warranty.

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Miscellaneous
Additional Information
    • Input Frequency Range : 50 Hz - 60 Hz
    • Nominal Input Voltage : 240 - 200 VAC
    • Phase : Single Phase
    • Nominal Output Voltage : 240 - 200 VAC
    • Outlet Banks : 1
    • Outlets - Total : 12
    • Overload Protection : None
    • Power Source Transfer Time : 2-7 ms
    • Source Failure Detection Time : 2-3 ms
    • Total Transfer Time : <10 ms
    • Environmental Sensor : Optional, via RJ45
    • Hardware Connection Port : Ethernet (RJ45)
    • LCD : Multifunction LCD
    • LED Indicators : Source Status
    • Modular Expandability (Cascading) : Yes, via RJ45
    • Outlet switching : Yes
    • Upgradeable firmware : Yes
    • Cord Retention Tray/Cord Organizers : Yes
    • External Site Ground Pin : Yes
    • Material of Construction : Metal
    • Operating Elevation : 0 - 13123 ft (0 - 4000 m)
    • Operating Relative Humidity : 0 - 95 % (non-condensing)
    • Operating Temperature : 32 - 113 °F (0 - 45 °C)
    • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
    • Storage Temperature : 5 - 131 °F (-15 - 55 °C)
    • Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA

Management
Management
    • IPv4
    • TCP/IP
    • UDP
    • SNMPv1
    • HTTP
    • NTP
    • DNS
    • Telnet
    • DHCP
    • SMTP
    • FTP
    • IPv6
    • SNMPv3
    • HTTPs
    • SSH
    • SSL
    • TLS
    • LDAP(S)
    • RADIUS
    • Syslog
    • CLI
    • Windows AD
Remote Outlet SwitchingYes
Power Description
Output Voltage230 V AC
Input Current15 A
Input Voltage Range200 V AC - 240 V AC
Output Voltage Range200 V AC - 240 V AC
General Information
Product TypePDU
Manufacturer Part NumberPDU44004
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product ModelPDU44004
Product NameSwitched ATS PDU PDU44004 12-Outlets PDU
Product SeriesSwitched ATS PDU
Brand NameCyberPower
Technical Information
Plug/Connector TypeIEC 60320 C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
DesignModular
PDU TypeSwitched
Receptacle Detail12 x IEC 60320 C13
Plug/Connector Detail2 x IEC 60320 C14
Physical Characteristics
Weight (Approximate)4.54 kg
Mount TypeRack-mountable
Rack Height1U
Height44.5 mm
Width433.1 mm
Depth214.6 mm
Mounting OrientationHorizontal
Product ColorBlack
