AUTO TRANSFER SWITCH 16AMP INC RMCARD205
AUTO TRANSFER SWITCH 16AMP INC RMCARD205
Product Overview

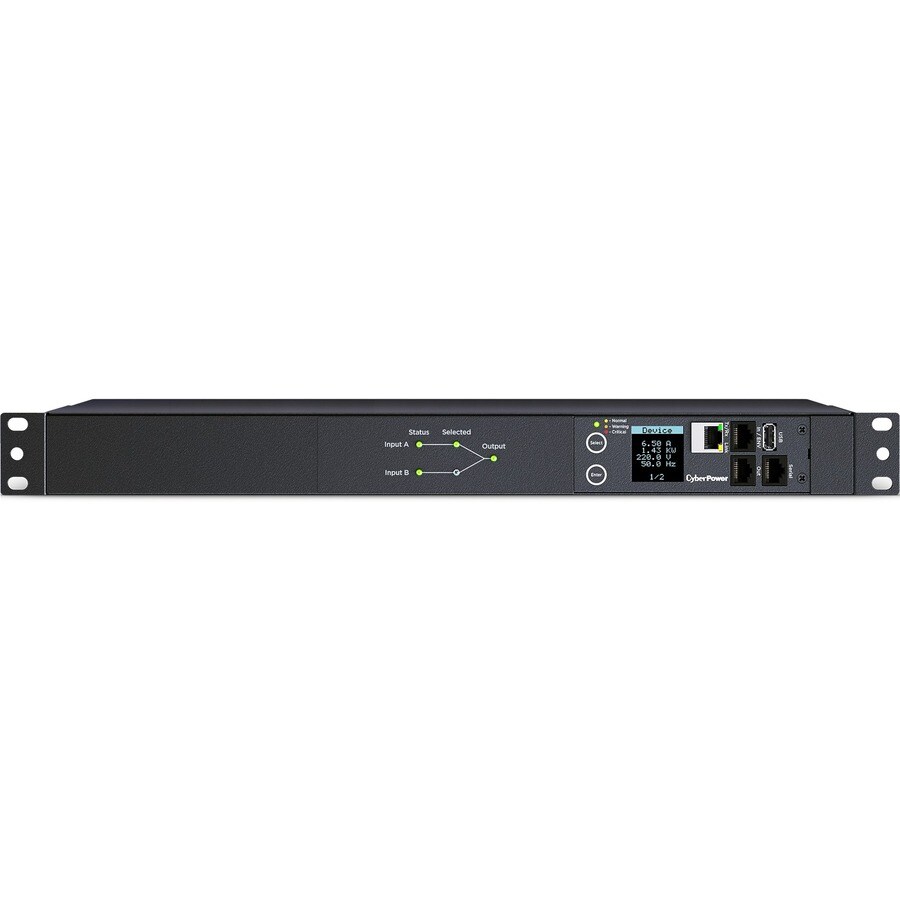

CyberPower PDU44005 Modular PDU - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 20 A - 230 V AC Output - 1U Network (RJ-45) - Horizontal - Rack-mountable
Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty.
Technical Specifications
Network (RJ-45) | Yes |
Additional Information |
|
Management |
|
Remote Outlet Switching | Yes |
Output Voltage | 230 V AC |
Input Current | 20 A |
Input Voltage Range | 200 V AC - 240 V AC |
Output Voltage Range | 200 V AC - 240 V AC |
Plug/Connector Type | IEC 60320 C20 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 | |
Design | Modular |
PDU Type | Switched |
Receptacle Detail | 8 x IEC 60320 C13 |
2 x IEC 60320 C19 | |
Plug/Connector Detail | 2 x IEC 60320 C20 |
Product Type | PDU |
Manufacturer Part Number | PDU44005 |
Manufacturer Website Address | https://www.cyberpower.com/au |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU44005 |
Product Name | Switched ATS PDU PDU44005 10-Outlets PDU |
Product Series | Switched ATS PDU |
Brand Name | CyberPower |
Weight (Approximate) | 3.76 kg |
Mount Type | Rack-mountable |
Rack Height | 1U |
Height | 44.5 mm |
Width | 433.1 mm |
Depth | 214.6 mm |
Mounting Orientation | Horizontal |
Product Color | Black |
