SWITCHED MBO EPDU 0RU 32AMP 2 YRS WTY
SWITCHED MBO EPDU 0RU 32AMP 2 YRS WTY
Product Overview
Switched MBO ePDU 0RU Vertical 32A Input - (Min Order Qty: 60) - SNMP Network Connection - 21X IEC320 C13 3X IEC320 C19 OUTPUT - IEC309 32A IN - 2 Years Adv. Repl. Warranty

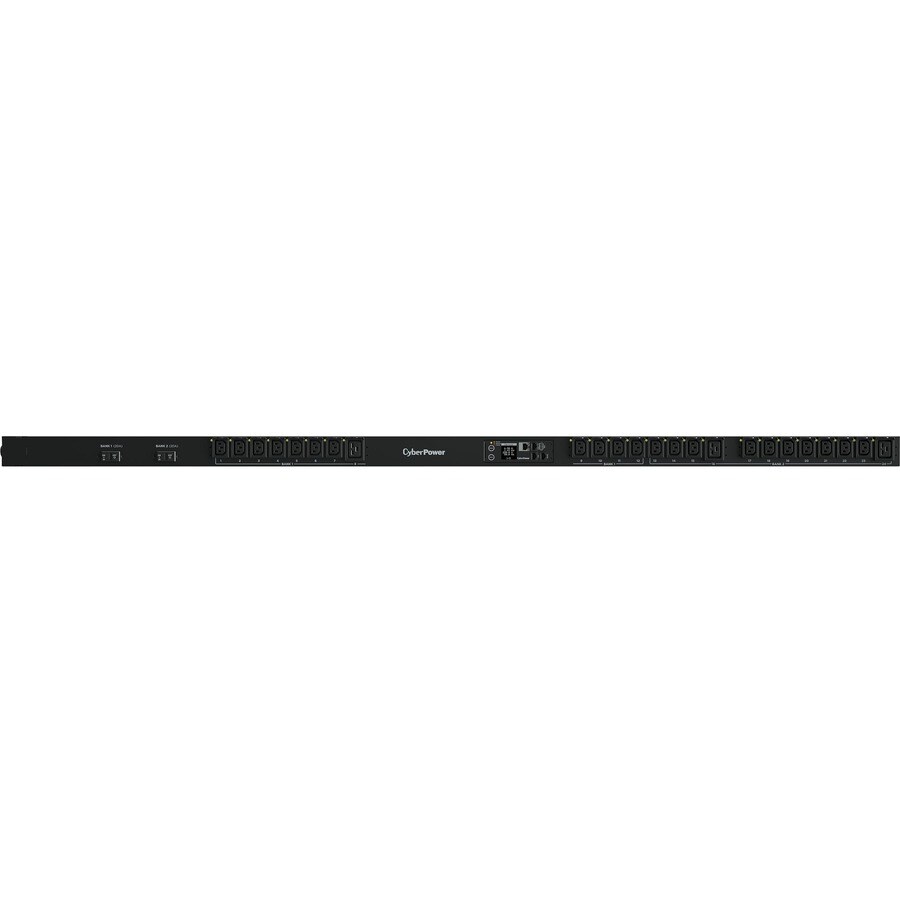

CyberPower PDU81405 Ideal for data center and enterprise applications, the Switched Metered-by-Outlet PDU Series is a network-grade power distribution unit, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The digital LCD display is hot-swappable, color configurable and rotatable, allowing users to easily maintain and monitor the PDU. The product is compatible with PowerPanel® Power Management Software and CyberPower ENVIROSENSOR for real-time monitoring and configuration. Other features include Cisco EnergyWise™, IEC receptacle locking and user-upgradeable firmware.
features
- Real-Time Local/Remote Monitoring and Switching of Individual Outlet
- ±1% Measurement Accuracy
- Ultra Low Power Consumption
- Controllable Receptacles with Power Sequencing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- PowerPanel® Management Software
- Work under High Temperature
- Real-Time Local/Remote Monitoring and Switching of Individual Outlet
- User Configurable Color LCD
- Ultra Low Power Consumption
- Firmware Upgrade via USB
- Hot-swappable LCD Design
Technical Specifications
| Network (RJ-45) | Yes |
| Environmentally Friendly | Yes |
| Management |
|
| Remote Outlet Switching | Yes |
| Input Voltage | 230 V AC |
| Input Current | 32 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 32A |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched with Metered-by-Outlet |
| Receptacle Detail | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 | |
| Plug/Connector Detail | 1 x IEC 60309 32A |
| Product Type | PDU |
| Manufacturer Part Number | PDU81405 |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU81405 |
| Product Name | PDU81405 24-Outlets PDU |
| Brand Name | CyberPower |
| Weight (Approximate) | 7.98 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 1666.2 mm |
| Width | 55.9 mm |
| Depth | 48.3 mm |
| Mounting Orientation | Vertical |
