Product Overview

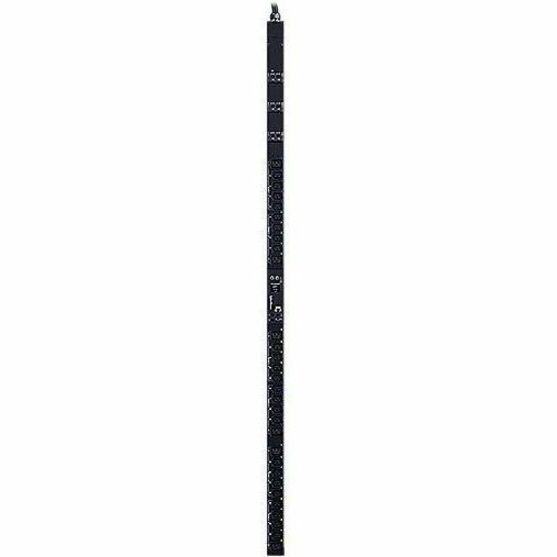

3 Phase Switched MBO ePDU ORU Vertical - SNMP Network Connection - 24x IEC320 C13 6x IEC320 C19 out -IEC-309 - (Min Order Qty: 60)

CyberPower PDU83402 is a 3-phase network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The product's multi-color outlet LED allows users to easily identify power phase even in dark environment. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD's colors to easily categorize devices.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

  • Real-time Local/Remote Monitoring and Switching of Individual Outlet
  • Controllable Receptacles with Power Sequencing
  • Work under High Temperature
  • ±1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking
  • Power Monitoring of Individual Phase
  • Overload Protection
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • PowerPanel Management Software
  • Cord Retention Tray

Technical Specifications

Interfaces/Ports
Network (RJ-45)Yes
Management
Management
    • IPv4/v6
    • SNMPv1/v3
    • HTTP/HTTPs
    • TCP/IP
    • UDP
    • DHCP
    • NTP
    • DNS
    • SMTP
    • SSH
    • SSL
    • TLS
    • Telnet
    • FTP
    • Syslog
    • RADIUS
    • LDAP
    • LDAPS
    • Windows AD
Remote Outlet SwitchingYes
Miscellaneous
Package Contents
  • 30-Outlets PDU
  • User's Manual
  • Product Registration Card
  • Cord Retention Tray
  • Mounting Brackets
  • Cable Ties
  • Screw Kit
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Technical Information
Protection TypeOverload Protection
Circuit Breaker
Plug/Connector TypeIEC 60309 (3P+N+E) 32A
PhaseThree Phase
Receptacle TypeIEC 60320 C13
IEC 60320 C19
PDU TypeSwitched with Metered-by-Outlet
Environmental SensorsTemperature/Humidity
Locking ReceptaclesIEC 60320 C19
IEC 60320 C13
Receptacle Detail6 x IEC 60320 C19
24 x IEC 60320 C13
Plug/Connector Detail1 x IEC 60309 (3P+N+E) 32A
Power Description
Output Voltage230 V AC
Input Current32 A
Input Voltage Range346 V AC - 415 V AC
Output Voltage Range200 V AC - 240 V AC
General Information
Product TypePDU
Manufacturer Part NumberPDU83402
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product Name30-Outlets PDU
Brand NameCyberPower
Physical Characteristics
Weight (Approximate)8.48 kg
Mount TypeRack-mountable
Rack Height0U
Height1790.7 mm
Width55.9 mm
Depth55.9 mm
Mounting OrientationVertical
Product ColorBlack
Color FamilyBlack
