R760 4410Y 32GB 600GB SAS H755 1400W 3Y
R760 4410Y 32GB 600GB SAS H755 1400W 3Y
Product Overview

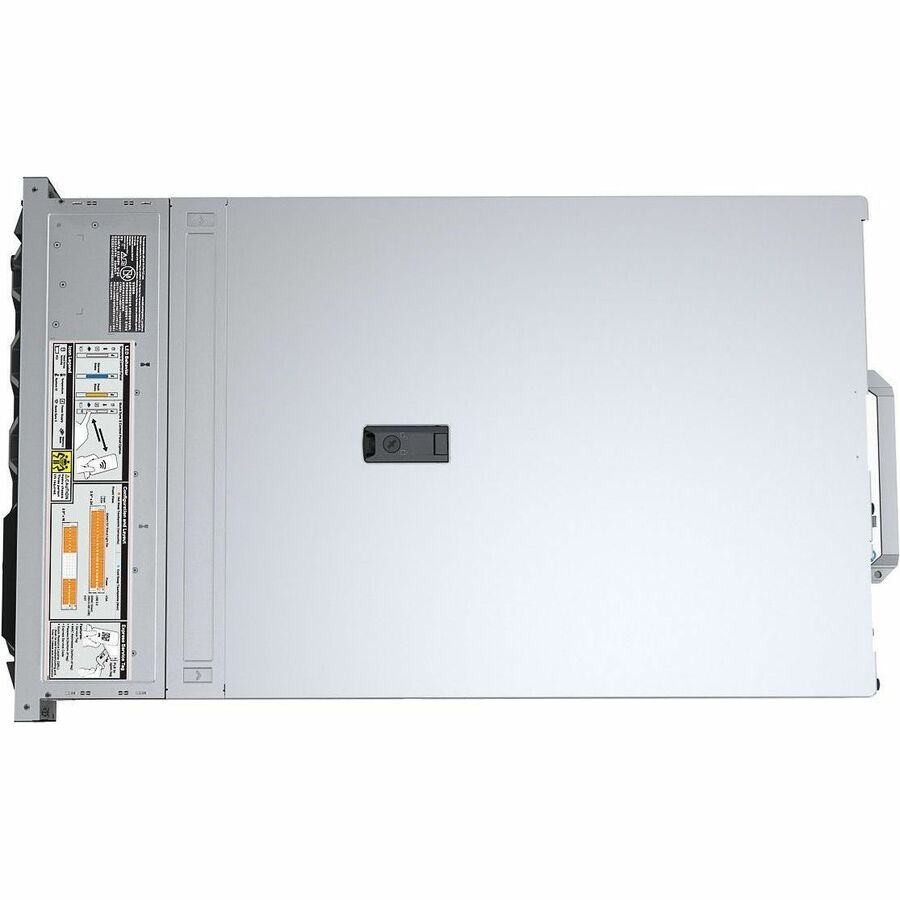

PowerEdge R760 Rack Server - 2 x Xeon Silver 4410Y - 32GB RAM 2x16GB - 600GB SAS HDD - PERC H755 - 1400W - No OS - 3Y ProSupport NBD
PowerEdge R760 | Provides performance and versatility as needed to address your most demanding applications
The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
Max Performance
- Add up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores or two 5th Generation Intel Xeon Scalable processors with up to 64 cores for faster and more accurate processing performance.
- Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4800 MT/sec for 1DPC when using 4th Gen Intel Xeon Scalable processors of 32 DDR5 RDIMMS up to 5600 MT/sec for 1DPC when using 5th Gen Intel Xeon Scalable processors.
- Support for GPUs including 2 x double-wide or 6 x single-wide for workloads requiring acceleration.
Air cooled at peak performance
- New Smart Flow chassis optimizes airflow to support the highest core count CPUs in an air-cooled environment within the current IT infrastructure.
- Support for up to 16 x 2.5" drives and 2 x 350 watt processors.
Gain agility
- Achieve maximum efficiency with multiple chassis designs that tailor to your desired workloads and business objectives.
- Storage options include up to 12 x 3.5" SAS3/SATA; or up to 24 x 2.5" SAS4/SATA, plus up to 24 x NVMe U.2 Gen4, 16 x NVMe E3.S Gen5.
- Multiple Gen4 and Gen5 riser configurations (up to 8 x PCIe s
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 1.40 kW power supply unit (PSU) fulfils your system's power requirements
- With 32 GB memory, improve system performance to execute complex applications
- 600 GB HDD provides you with enough space for documents, files and more
Technical Specifications
Chipset Manufacturer | Intel |
Ethernet Technology | Gigabit Ethernet |
Additional Warranty Information | 3 Year ProSupport and Next Business Day Onsite Service |
Package Contents |
|
Security Features |
|
Energy Star | No |
Controller Type | Serial ATA |
Serial Attached SCSI (SAS) | |
RAID Supported | Yes |
Controller Model | PERC H755 |
Operating System Supported | Hyper-V |
Red Hat Enterprise Linux | |
Windows Server | |
Ubuntu | |
SuSE Linux Enterprise Server |
Form Factor | Rack |
Rack Height | 2U |
Height | 86.8 mm |
Width | 482 mm |
Depth | 772.1 mm |
Hard Drive Interface | 12Gb/s SAS |
Hard Drive RPM | 10000 |
Number of Hard Drives | 1 |
Total Hard Drive Capacity | 600 GB |
Hard Drive Configuration | 1 x 600GB |
Riser Card | Riser Config 2, Half Length, Low Profile, 1x16 + 1x8 + 2x8 (Gen5) |
"Number of Internal 2.5"" Bays" | 8 |
Number of Total Expansion Bays | 8 |
Total Number of Expansion Slots | 8 |
Hot Swappable Bays | Yes |
Number of SFF Bays | 8 |
PCI Express Details | 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) ; 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) |
Error Checking | ECC |
Maximum Memory Supported | 8 TB |
Signal Processing | Registered (Buffered) |
Standard Memory | 32 GB |
Memory Technology | DDR5 SDRAM |
Number of Occupied Memory Slots | 2 |
Total Number of Memory Slots | 32.0 |
Product Type | Server |
Manufacturer Part Number | PER76010A |
Manufacturer Website Address | http://www.dell.com.au |
Manufacturer | Dell Technologies |
Product Model | R760 |
Product Name | PowerEdge R760 Server |
Product Line | PowerEdge |
Brand Name | Dell |
Input Voltage | 120 V AC |
230 V AC | |
Power Source | Power Supply |
Plug/Connector Type | C13/C14 |
Number of Power Supplies Installed | 1 |
Redundant Power Supply | No |
Hot Swappable Power Supply | Yes |
Maximum Power Supply Wattage | 1.40 kW |
VGA | Yes |
Number of Network (RJ-45) Ports | 2 |
Network (RJ-45) | Yes |
Remote Management | Yes |
Total Number of USB Ports | 4 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.0 Ports | 1 |
Number of VGA Ports | 2 |
Remote Management Controller | iDRAC9, Express 16G |
Cache | 30 MB |
Processor Speed | 2 GHz |
Processor Type | Xeon Silver |
Processor Model | 4410Y |
Processor Core | Dodeca-core (12 Core) |
Processor Manufacturer | Intel |
Number of Processors Supported | 2 |
Number of Processors Installed | 2 |
Processor Generation | 2nd Gen |
