2 Port PCI Express Serial Card LP

2 Port PCI Express Serial Card LP

2 Port PCI Express Serial Card LP

Product Overview

StarTech.com Serial Adapter - Dual-profile Plug-in Card - 1 Pack - PCI Express - PC - 2 x Number of Serial Ports External

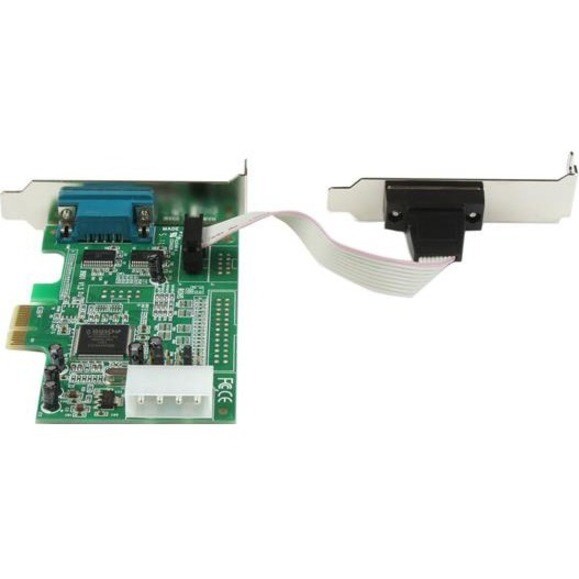

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI expansion slot. The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

Technical Specifications

Interfaces/Ports
Number of Serial Ports (External)2
Technical Information
Platform SupportedPC
UART Type16550
General Information
Product TypeSerial Adapter
Manufacturer Part NumberPEX2S553LP
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product Name2 Port Low Profile PCI Express Serial Card - 16550
Brand NameStarTech.com
Miscellaneous
Additional Information
    • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
    • Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility.
    • Easy to install and use with full step-by-step instructions saves time and hassle.
Package Contents
  • 2 Port Low Profile PCI Express Serial Card
  • Half-height Mounting Bracket
Environmentally FriendlyYes
Physical Characteristics
Weight (Approximate)62.4 g
Form FactorPlug-in Card
Length104.1 mm
Height20.3 mm
Width78.7 mm
Card HeightDual-profile

Price Trend

Current Price
AUD 90.99
