3 Phase 160A 80kA Enclosed
3 Phase 160A 80kA Enclosed
Product Overview

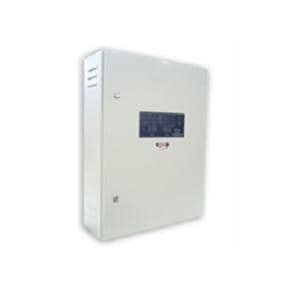

Eaton PPF1603CEI Surge Suppressor/Protector - 380 V AC
Designed for IEC, Class II, 3 phase. Point of entry and sub circuit applications. An ideal combination, high performance series filter with remote alarm output for critical applications.
- Surge suppression & filtering in a single package
- Standard Current ratings from 100A to 400A
- 1 mode, Multi-Element Series Filter
- 2 mode, 3 stage Surge Diverter
- Surge suppression ratings from 80kA to 240kA
- Provides extensive high frequency & RF filtering
- Incorporates a EN certified EMI/RFI filter
- Panel-mounted mimic display
- Protection Fail Alarm Relay
- Enclosed in IP24 painted steel cabinet
Technical Specifications
Power Description
| Input Voltage | 440 V AC |
| 380 V AC |
General Information
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | PPF1603CEI |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | PPF1603CEI |
| Product Name | PPF1603CEI Surge Suppressor/Protector |
| Product Series | PPFI |
| Brand Name | Eaton |
Physical Characteristics
| Weight (Approximate) | 50 kg |
| Height | 800 mm |
| Width | 600 mm |
| Depth | 200 mm |
Price Trend
Current Price
AUD 13,191.00
