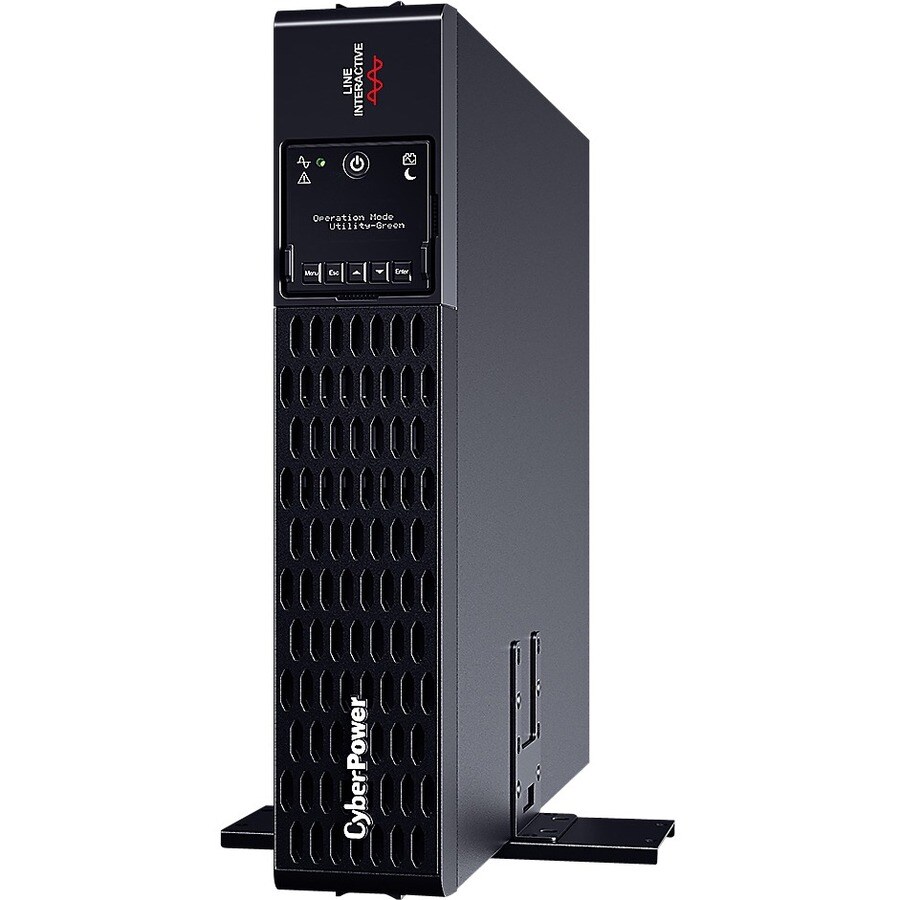

PRO RACK/TOWER LCD 2200VA/ 2200W 2U UPS
PRO RACK/TOWER LCD 2200VA/ 2200W 2U UPS
Product Overview
Pro Rack/Tower LCD 2200VA/ 2200W 2U Line Interactive UPS - 15A - (Project Only with Min Order Qty) - 4 12V/9AH - 6X IEC 320 C13 2X IEC 320 C19 - 3 Years Adv. Repl. Warranty
CyberPower PR2200ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Night Mode Design
- Tool-less Battery Replacement
- Battery Management Technology
- High Output Power Factor
- Automatic Voltage Regulation (AVR)
- Overload Protection
Technical Specifications
| Status Indicators |
LCD Information Display: LED Indicators: |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Thermal Dissipation | 116 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Application/Usage | Supermarket |
| Surveillance System | |
| Telecommunication | |
| Train Station | |
| Workstation | |
| Storage Device | |
| SOHO Office | |
| Server Room | |
| Network Device | |
| Multimedia Device | |
| IT Equipment | |
| Airport | |
| Computer | |
| Data Center | |
| Factory | |
| Home Theatre | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 2 x IEC 60320 C19 |
| Weight (Approximate) | 34.43 kg |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 434.3 mm |
| Depth | 500.4 mm |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | On Battery |
| Overload | |
| Overheat | |
| Low Battery | |
| Battery Mode | |
| Over-charge |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR2200ERTXL2U |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200ERTXL2U |
| Product Name | Smart App PR2200ERTXL2U 2200VA Rack/Tower UPS |
| Product Line | Smart App |
| Brand Name | CyberPower |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 11.20 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 220 V AC | |
| 240 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 159 V AC - 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
