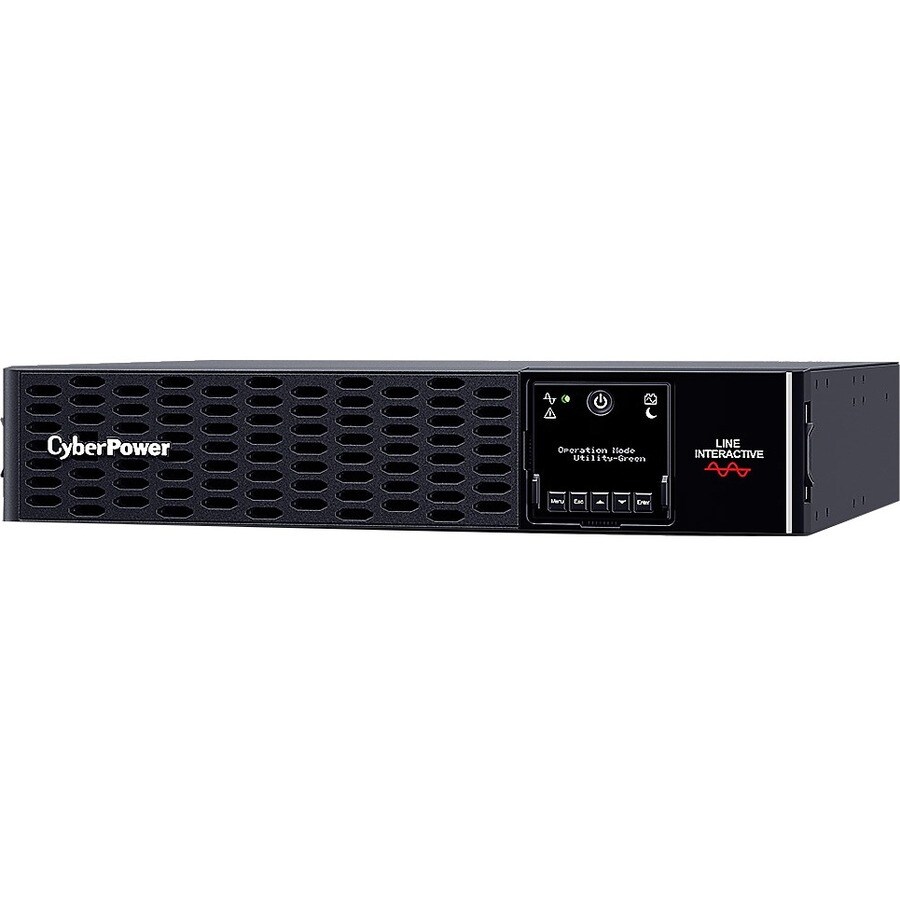

PRO RACK/TOWER LCD 3000VA/3000W 2U UPS
PRO RACK/TOWER LCD 3000VA/3000W 2U UPS
Product Overview
CyberPower Smart App PR3000ERTXL2U Line-interactive UPS - 3 kVA/3 kW - 2U Rack/Tower - AVR - 3 Hour Recharge - 1.70 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13, 2 x IEC 60320 C19 - Single Phase - Serial Port - 8 x Battery/Surge Outlet
CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
- Line-interactive UPS Topology
- Active PFC Compatible
- Toolless Battery Replacement
- High Output Power Factor
- Overload Protection
- Quick Charging Technology
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- USB Connectivity Port
- Emergency Power Off (EPO) Port
Technical Specifications
| Status Indicators |
LCD Information Display: LED Indicators: |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Thermal Dissipation | 432000 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Overheat |
| Over-charge | |
| Low Battery | |
| Overload | |
| Battery Mode |
| Application/Usage | Home Theatre |
| Surveillance System | |
| Workstation | |
| Telecommunication | |
| Computer | |
| IT Equipment | |
| Multimedia Device | |
| Network Device | |
| Overload Protection | Yes |
| Plug/Connector Type | AU |
| IEC 60320 C20 | |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 2 x IEC 60320 C19 |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 7.10 Minute |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Weight (Approximate) | 32.79 kg |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 434.3 mm |
| Depth | 500.4 mm |
| Product Color | Black |
| Color Family | Black |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR3000ERTXL2U |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR3000ERTXL2U |
| Product Name | Smart App PR3000ERTXL2U 3000VA Rack/Tower UPS |
| Product Line | Smart App |
| Brand Name | CyberPower |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 220 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 159 V AC - 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
