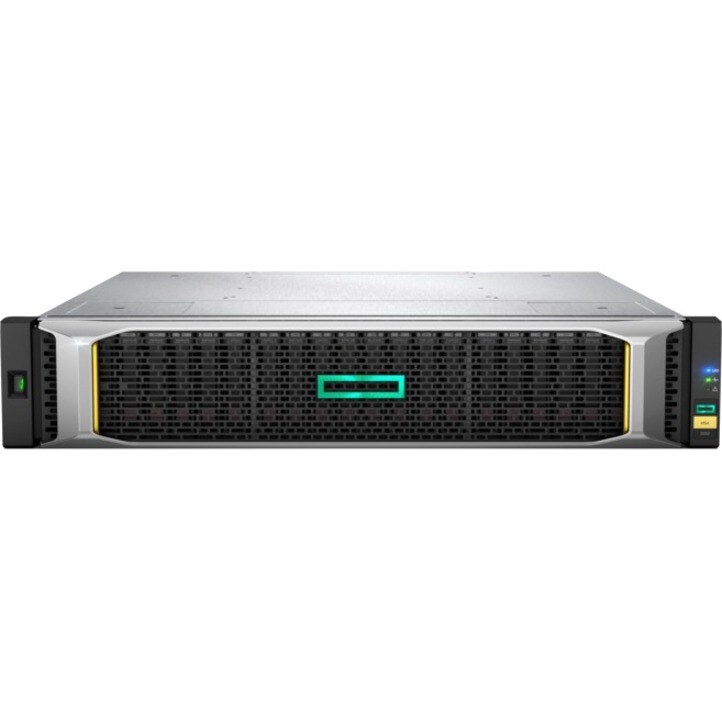

HPE MSA 2052 SAN DC SFF Storage
HPE MSA 2052 SAN DC SFF Storage
Product Overview
HPE 2052 24 x Total Bays SAN Storage System - 2 x 800GB SSD - 2U Rack-mountable - 0 x HDD Installed - 1.60 TB Total Installed SSD Capacity - 6Gb/s SAS - 6Gb/s SAS Controller - RAID Supported - 1, 5, 6, 10 RAID Levels - 4 x RJ-45 - 10 Gigabit Ethernet
Key Features
Affordable Application Acceleration
The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering outstanding application acceleration for small to medium-sized businesses either locally or remotely.
Delivers 2x more performance than the previous HPE MSA 2042 SAN Storage generation [2].
Save 40% on HPE MSA 2052 with all-inclusive software and 1.6 TB of Solid State Drive (SSD) capacity included.
Advanced Data Services With No Experience Required
The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no storage previous expertise required.
Automated tiering dynamically responds to workload changes, so you don't have to.
Keep Your Business Running with Expanded Data Protection Features
The HPE MSA 2052 SAN Storage provides updated virtualized snapshot technology making data protection and instant recovery a snap.
Remote replication with Fibre Channel (FC) and iSCSI supports an affordable disaster recovery solution.
Grow Flexibly Now and Into the Future
The HPE MSA 2052 SAN Storage delivers data-in-place upgrades protecting drive investments and reduces data migrations.
Start small and scale as needed with any combination of Solid State Drives (SSDs), enterprise or midline SAS disk drives.
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Through RAID levels (1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Technical Specifications
| Number of Total Expansion Bays | 24 |
| "Number of 2.5"" Bays" | 24 |
| Protocols | FCP |
| iSCSI |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Levels | 1, 5, 6, 10 |
| Controller Type | 6Gb/s SAS |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Weight (Approximate) | 18.40 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 89 mm |
| Width | 495 mm |
| Depth | 447 mm |
| Fibre Channel | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Number of SAS Ports (External) | 2 |
| Total Solid State Drive Capacity Installed | 1.60 TB |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 2 |
| Solid State Drive Configuration | 2 x 800GB |
| Product Type | SAN Storage System |
| Manufacturer Part Number | Q1J03B |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 2052 |
| Product Name | MSA 2052 SAN Dual Controller SFF Storage |
| Product Series | 2000 |
| Brand Name | HPE |
