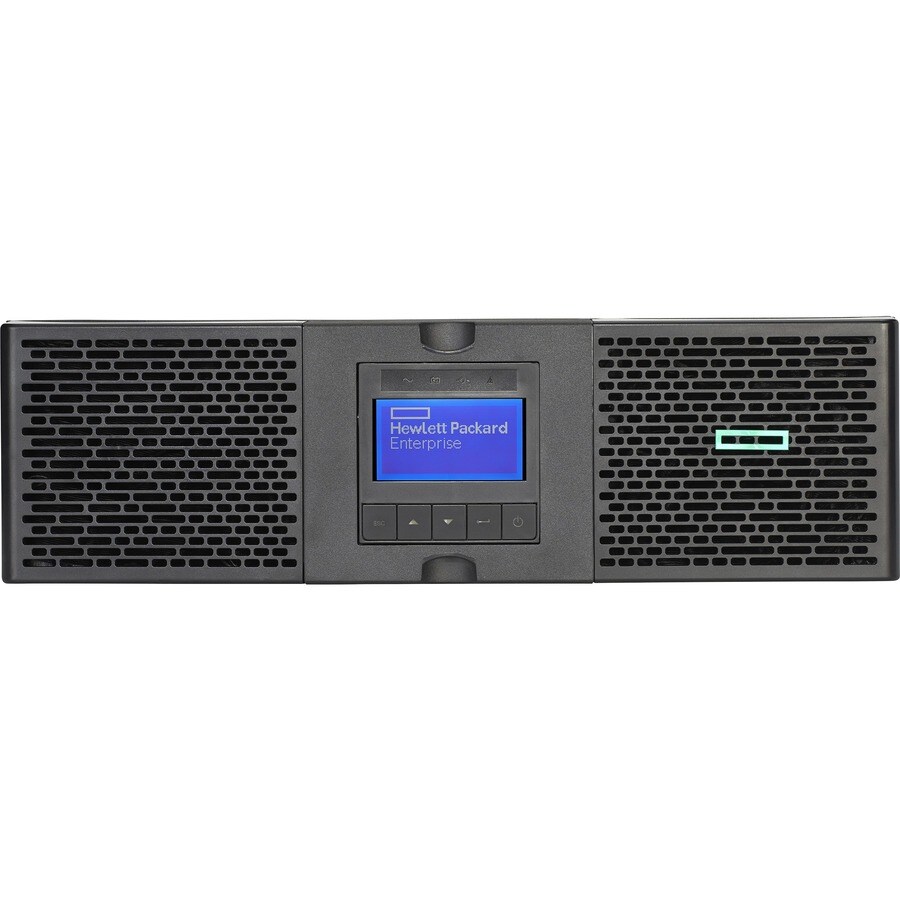

HPE G2 R6000 3U IEC/230V 9out INTL UPS

HPE G2 R6000 3U IEC/230V 9out INTL UPS

HPE G2 R6000 3U IEC/230V 9out INTL UPS

Product Overview

HPE R6000 Double Conversion Online UPS - 6 kVA/5.40 kW - 3U Rack-mountable - 3 Minute Stand-by - 230 V AC Input - 4 x IEC 60320 C19, 4 x IEC 60320 C13, 1 x IEC 60309 32A - Single Phase - Serial Port

Does your IT workload require high availability power protection? HPE Online Double Conversion Rackmount Uninterruptible Power System enables high system availability by eliminating transfer time to battery power for all connected IT equipment. HPE Enhanced Battery Management technology improves battery service life by up to 50% while monitoring battery health and providing advanced notice when replacement is required. Scale system runtime from minutes to hours by adding up to four Extended Runtime Modules. HPE Online Double Conversion UPS includes a 1GbE Network Management Module that provides access to the UPS and its embedded web-based user interface, allowing you to monitor and manage individual UPS systems. With Eaton® Intelligent Power Manager software, users can centralize remote monitoring and management of multiple HPE UPS systems and seamlessly integrate them into virtualization platforms, such as HPE SimpliVity, to manage virtual machines and extend battery runtime.

What's new

  • Brings Online Double-Conversion technology to the Hewlett Packard Enterprise single-phase UPS portfolio.
  • Supports the HPE 1GbE Network Management Module as a standard feature.
  • Provides virtualization-ready support for HPE SimpliVity when using the Eaton Intelligent Power Manager software (free download).
  • Adds a UPS model for North America and Japan (NA/JPN) specifically targeting backup power for larger network switches.
  • Adds an R6000 international (INTL) model that provides 20% more power than current R5000 INTL model.
  • Supports greater flexibility by adding hardwired power input for 30A/32A models (R8000).

Features

Improve the Availability of Your IT Systems

The HPE Online Double Conversion Rackmount Uninterruptible Power System utilizes a power topology that offers one of the highest levels of power protection by helping eliminate transfer time to battery power for all connected server, storage, and networking equipment.

HPE Enhanced Battery Management technology increases battery service life by up to 50% through an advanced, three-stage charging technique that closely monitors battery health and provides advanced notice when batteries need replacement.

Scale UPS runtime from minutes to hours by adding up to four Extended Runtime Modules to your UPS.

Monitor and Manage your HPE UPS from Across the Network

The HPE Online Double Conversion Rackmount Uninterruptible Power System includes the new 1GbE Network Management Module that supports easy integration into most IT networks and access to the embedded web-based user interface for managing individual UPS systems.

Eaton Intelligent Power Manager (IPM) software, available via free download, enables remote monitoring and management of multiple Hewlett Packard Enterprise UPS systems across the network from a single interface.

Eaton IPM also supports seamless integration of Hewlett Packard Enterprise UPS systems into industry-leading virtualization platforms, such as HPE SimpliVity, allowing you to manage critical and non-critical virtual machines to extend battery runtime.

  • Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
  • 6 kVA load capacity - work without any interruption during power outages
  • 5.40 kW load capacity - backup power for your valuable electronics

Technical Specifications

Miscellaneous
Environmentally FriendlyYes
Interfaces/Ports
Serial PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Sound Emission45 dB
Maximum Operating Temperature40°C
Maximum Operating Elevation1.50 km
Physical Characteristics
Weight (Approximate)48.90 kg
Rack Height3U
Height129.5 mm
Width439.4 mm
Depth721.4 mm
Technical Information
Application/UsageIT System
Plug/Connector TypeIEC 60309 32A
PhaseSingle Phase
Receptacle TypeIEC 60320 C19
IEC 60309 32A
IEC 60320 C13
Receptacle Detail4 x IEC 60320 C19
1 x IEC 60309 32A
4 x IEC 60320 C13
Battery Information
Battery ChemistryLead Acid
Backup/Run Time (Half Load)8.50 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsMaintenance-free, Sealed, Valve-regulated
Replaceable BatteryYes
DC System Voltage180 V DC
Power Description
Input Voltage230 V AC
Waveform TypeSinusoidal
Input Voltage Range200 V AC - 250 V AC
Input Frequency60 Hz
Load Capacity (VA)6 kVA
Load Capacity (Watt)5.40 kW
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberQ7G11A
Manufacturer Website Addresshttps://www.hpe.com/au/
ManufacturerHewlett Packard Enterprise
Product ModelR6000
Product NameR6000 6kVA Rack-mountable UPS
Brand NameHPE
