Product Overview

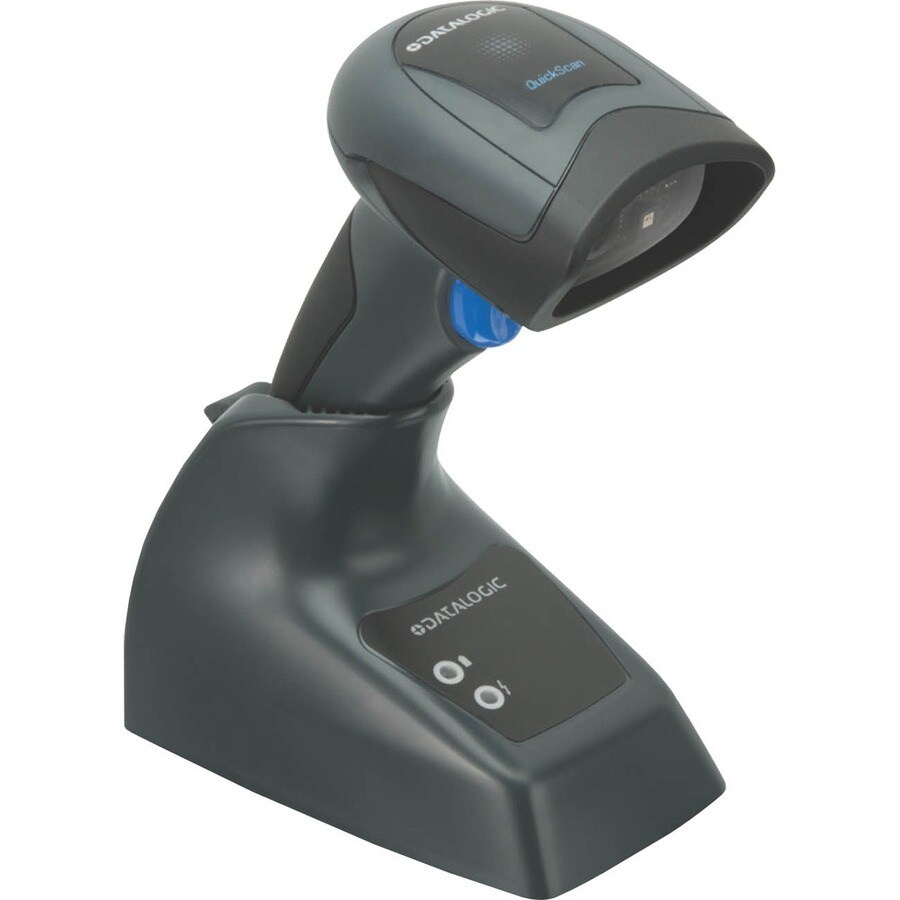

QUICKSCAN QM2131 LI USBQUICKSCAN QM2131 LI USB KIT 433 BLK
Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- Scan barcodes with a staggering speed of 400 scan/s
Technical Specifications
| Radio Frequency | Yes |
| Host Interface | USB |
| Serial | |
| Keyboard Wedge |
| Additional Information | USB Cable separate |
| Platform Supported | Android |
| iOS | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP42 |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | QM2131-BK-433K1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Packaged Quantity | 3 |
| Manufacturer | Datalogic S.p.A |
| Product Model | QM2131 |
| Product Name | QuickScan I QM2131 Handheld Barcode Scanner Kit |
| Product Line | QuickScan I |
| Brand Name | Datalogic |
| Weight (Approximate) | 190 g |
| Form Factor | Handheld |
| Height | 163 mm |
| Width | 41 mm |
| Depth | 91 mm |
| Product Color | Black |
| Color Family | Black |
| Barcode Symbology Supported |
|
| Connectivity Technology | Wireless |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Scan Rate | 400 scan/s |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 120000 lux |
| Minimum Print Contrast | 25% |
