1m QSFP+ Breakout Cable QSFP+ to 4 SFP+
1m QSFP+ Breakout Cable QSFP+ to 4 SFP+
Product Overview
StarTech.com MSA Uncoded Compatible 1m QSFP+ to 4x SFP+ Direct Attach Breakout Cable - 40GbE - QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power - Cable for Network Device, Server, Switch - First End: 1 x QSFP+ Network - Male - Second End: 4 x SFP+ Network - Male - 40 Gbit/s - 30 AWG - Black

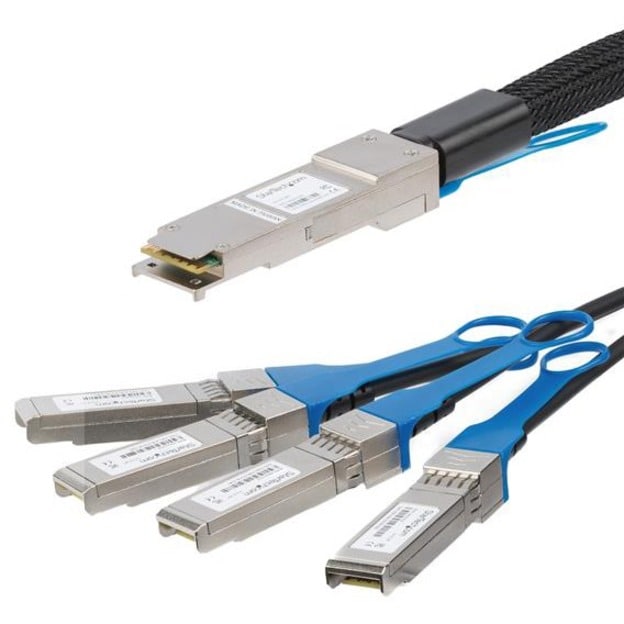

The QSFP4SFPPC1M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 1 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP CablesAll StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- Fully compatible with network devices
- Offers a reliable network connectivity
- Features Passive
Technical Specifications
Environmentally Friendly | Yes |
Cable Length | 1 m |
Data Transfer Rate | 40 Gbit/s |
Device Supported | Network Device |
Transceiver | |
Switch | |
Server | |
Router | |
Features | Passive |
Hot-swappable | |
Connector Type on First End | QSFP+ Network - Male |
Connector Type on Second End | SFP+ Network - Male |
American Wire Gauge | 30 AWG |
Weight (Approximate) | 238 g |
Jacket Material | Polyvinyl Chloride (PVC) |
Product Color | Black |
Product Material | Copper |
Product Type | Network Cable |
Manufacturer Part Number | QSFP4SFPPC1M |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | Twinaxial Network Cable |
Brand Name | StarTech.com |
