0.5m 40G QSFP+ Direct Attach Cable
0.5m 40G QSFP+ Direct Attach Cable
Product Overview

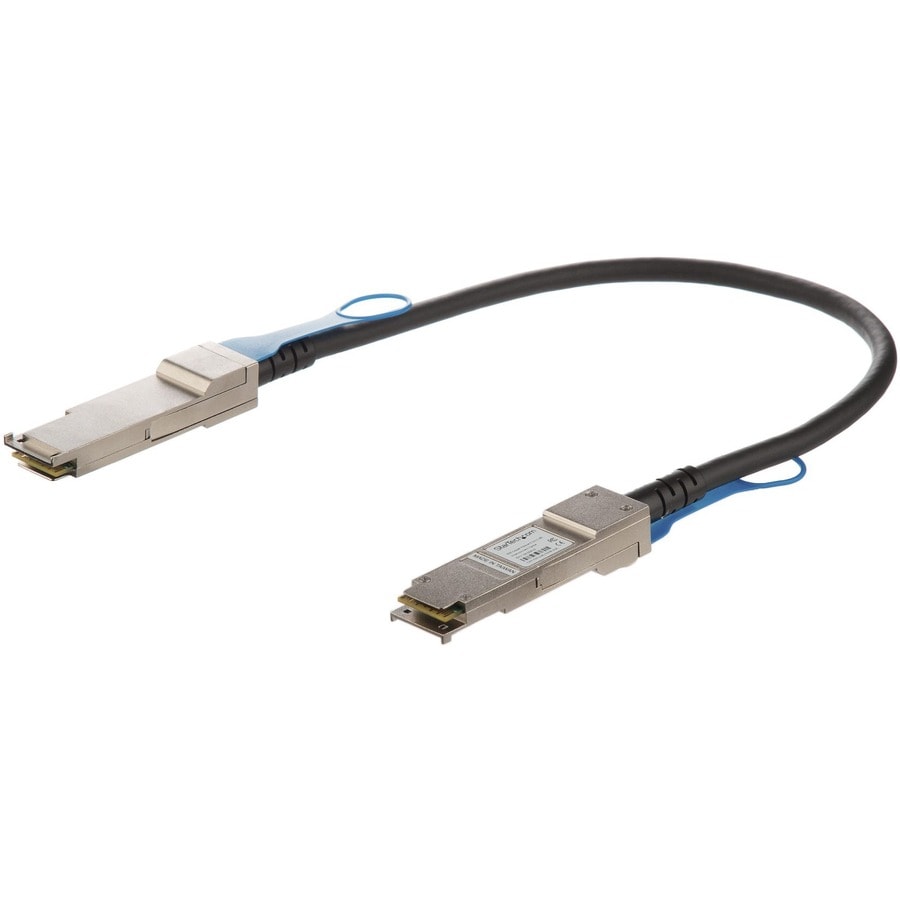

StarTech.com 0.5m 40G QSFP+ to QSFP+ Direct Attach Cable for Cisco QSFP-H40G-CU0-5M - 40GbE Copper DAC 40Gbps Passive Twinax - Cable for Network Device, Server, Switch - First End: 1 x QSFP+ Network - Male - Second End: 1 x QSFP+ Network - Male - 40 Gbit/s - 30 AWG - Black
The QSFPH40GCU05 is a Cisco QSFP-H40G-CU0-5M compatible direct-attach copper QSFP+ cable that's designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- Fully compatible with network devices
- Experience a simpler way to connect devices with the entire business network
- Features Passive
Technical Specifications
| Compatibility |
|
| Environmentally Friendly | Yes |
| Cable Length | 50 cm |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Router |
| Switch | |
| Server | |
| Network Device | |
| Features | Hot-swappable |
| Passive | |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | QSFP+ Network - Male |
| American Wire Gauge | 30 AWG |
| Weight (Approximate) | 99 g |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Product Material | Copper |
| Product Type | Network Cable |
| Manufacturer Part Number | QSFPH40GCU05 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | QSFP+ Direct Attach Cable - 0.5 m (1.6 ft.) |
| Brand Name | StarTech.com |
