Product Overview

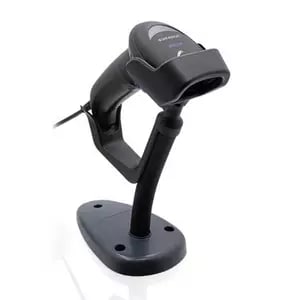

QuickScan QW2520, 2D VGA Imager, USB Interface, Black (Kit includes Scanner, USB Cable 90A052258 and Stand STD-QW25-BK)

Reliable, repeatable performance that you need

The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today's Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners.

Improve performance with user friendly feedback

When using the QuickScan 2500 imager, you want a low-cost device with top guaranteed scanning performance and a reliable read every time, period. You want an easy to aim device that gives clear audible, tactile and visual feedback on each read, good or bad. You want a device that sits comfortably in your hand and never gives you fatigue, no matter how long your working shift. The QuickScan 2500 imager does not fail, even when continually used for long periods of time and provides plenty of freedom of movement with high quality cables that are robust enough to withstand constant abuse. Any type of barcode - 1D, 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes - the QuickScan 2500 imager has you covered.

Connect, configure, use

As well as being the very affordable and easy to use handheld scanning solution for your business, the QuickScan 2500 imager is extremely easy to setup. It will give you the best fit for your store environment. The simple and seamless configuration of the scanner with connectivity to all manner of hosts, makes this the only solution you will need for your business. It is well built and will comfortably survive 5 ft drops and over 10 million trigger presses. The adjustable brightness of the light source makes it comfortable to suit most people's eyes. With Motionix technology, the imager is ready for action as soon as it is picked up. All in all, you have at your fingertips the perfect device for scanning all your goods.

Perform, perform, perform

The QuickScan 2500 imager boasts a very rich feature set for out-of-the-box capabilities. The 1 MP optics provide best-in-class scanning and depth of field for all your applications. No need to worry about scanning orientation as it is omnidirectional. It will seamlessly read codes displayed on smartphone screens, making promotions and coupons easy to manage. The imager is equipped with an easy to see aiming system that consists of two blue triangles, providing full guidance with extreme precision. This makes it easy for the staff to target the right code to read, and the patented Green Spot technology from Datalogic is clearly projected as a visual indicator upon each successful read.

  • Choice of optics between 1 MP for superior scanning and Depth Of Field (QD, QM and QBT) and VGA (QW) for the extra-affordability
  • Datalogic LED-based technology with extreme precision aiming system
  • Datalogic's 'Green Spot' technology for superior good-read feedback
  • Motionix™ patented motion-sensing technology for seamless reading mode transitions
  • Omnidirectional reading for 1D, 2D, postal codes,stacked and composite bar codes, dot codes and Digital Watermark codes
  • • Choice of Bluetooth 4.0 wireless technology model or Datalogic's STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
  • Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C
  • Aladdin™ 3.0 configurator provides the latest GUI, search engines, and an on-line version that offers the ability to generate programming barcodes to scan directly on a smartphone
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Technical Specifications

Interfaces/Ports
Host InterfaceUSB
Keyboard Wedge
Serial
Physical Characteristics
Weight (Approximate)145 g
Form FactorHandheld
Product ColorBlack
Color FamilyBlack
RuggedYes
Technical Information
Barcode Symbology Supported
    1D :
    • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
    2D :
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Dot code

    Postal Codes :

    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)

    Stacked Codes :

    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites

    Digital Watermarking :

    • Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Connectivity TechnologyCable
Scanning Distance510.54 mm
Image FormatsBMP
TIFF
JPEG
Drop SpecificationWithstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Scan PatternOmni-directional
Image Sensor TypeImager
Stand IncludedYes
Cable Type IncludedUSB
Scanning Capability2D
1D
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Motion Tolerance762 mm/s
Maximum Ambient Light110000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.13 mm
Maximum Element Resolution (Code 39)0.25 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (PDF417)0.17 mm
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberQW2520-BKK1S
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product ModelQW2520
Product NameQuickScan 2500
Product LineQuickScan
Product Series2500
Brand NameDatalogic
Miscellaneous
Application/UsageHospitality
Ticketing
Retail
Commercial Service
Government
Healthcare
Industrial
Light/Clean Manufacturing
Package Contents
  • QuickScan QW2520 Barcode Scanner Kit
  • USB Cable 90A052258
  • Stand STD-QW25-BK
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP52
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
