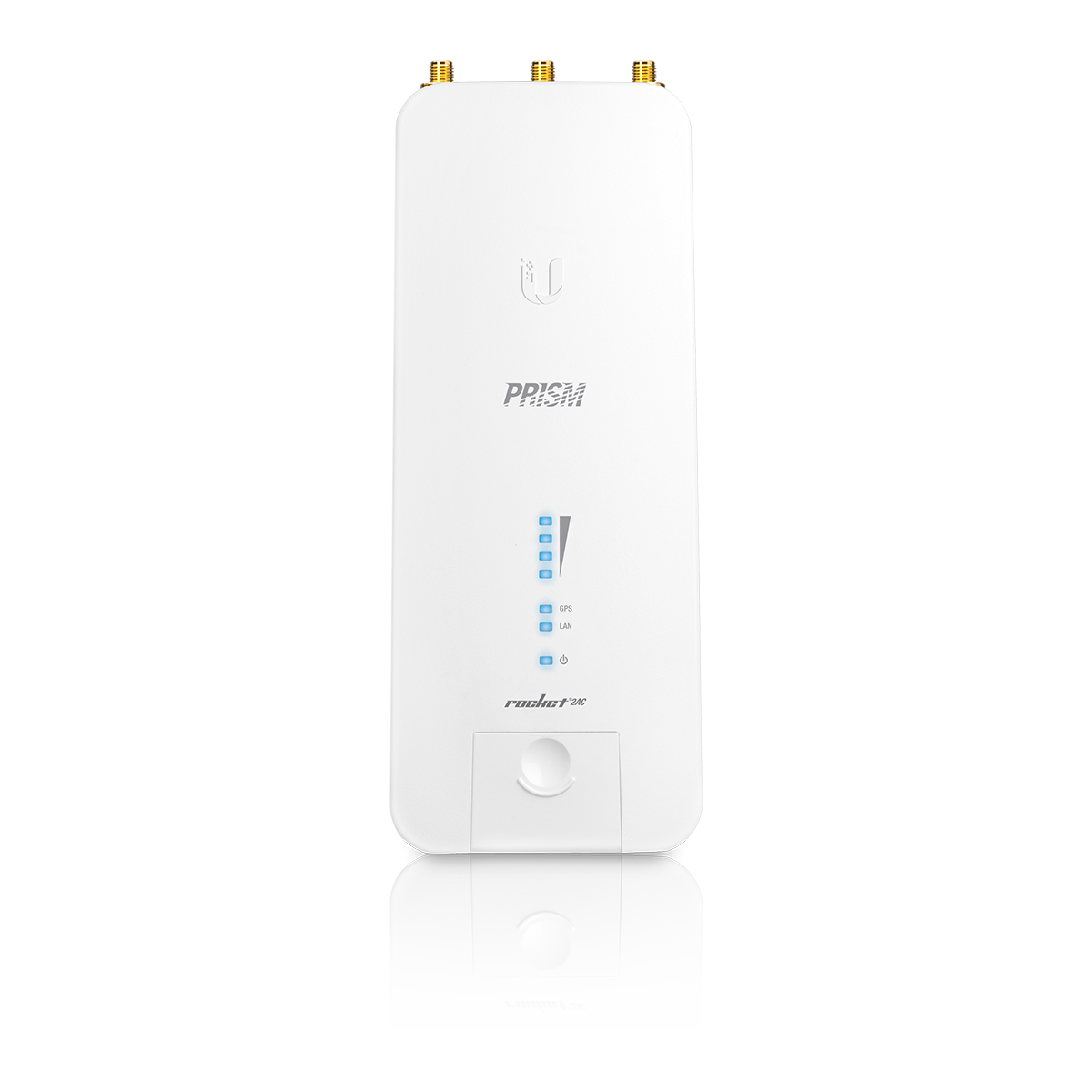

R2AC-PRISM

Product Overview

Mechanical
Dimensions	88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
Weight	400 g (14.1 oz)
Enclosure material	Die-cast aluminum
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range	20–27V DC
Max. power consumption	9.5W
RF connectors	(2) RP-SMA (waterproof) (1) GPS (waterproof)
LEDs	Power, LAN, (4) signal strength
ESD/EMP Protection	Air/contact ± 24kVt
Shock and vibrations	ETSI300-019-1.4
Ambient operating temperature	-40 to 80° C (-40 to 176° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
Management Radio (MHz)
Worldwide	5150 - 5250 MHz
US/CA	U-NII-3: 5725 - 5850 MHz

Mechanical
Dimensions	88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
Weight	400 g (14.1 oz)
Enclosure material	Die-cast aluminum
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range	20–27V DC
Max. power consumption	9.5W
RF connectors	(2) RP-SMA (waterproof) (1) GPS (waterproof)
LEDs	Power, LAN, (4) signal strength
ESD/EMP Protection	Air/contact ± 24kVt
Shock and vibrations	ETSI300-019-1.4
Ambient operating temperature	-40 to 80° C (-40 to 176° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
Management Radio (MHz)
Worldwide	5150 - 5250 MHz
US/CA	U-NII-3: 5725 - 5850 MHz
