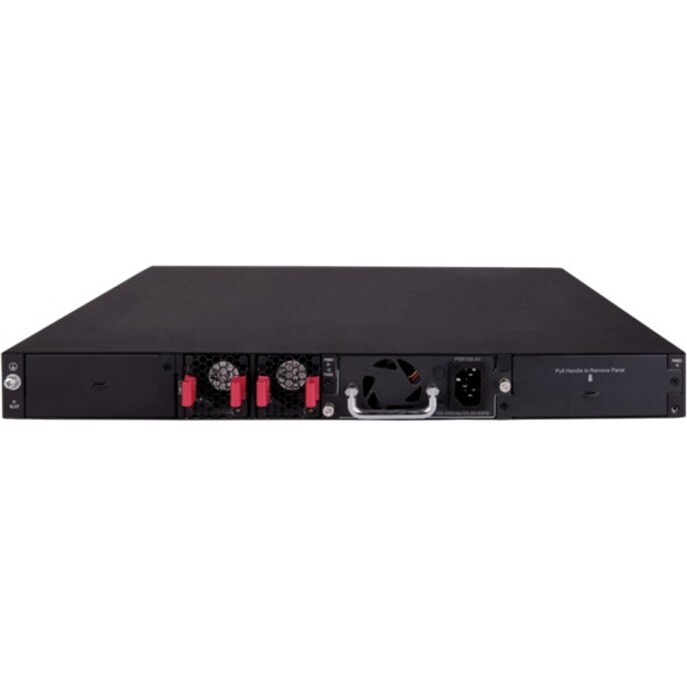

HPE 5520 48G 4SFP+ HI SWITCH
HPE 5520 48G 4SFP+ HI SWITCH
Product Overview
HPE FlexNetwork 5520 HI 48 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 27 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable, Cabinet Mount
HPE FlexNetwork 5520 HI Switch SeriesThe HPE FlexNetwork 5520 HI Switch series delivers superior performance, high availability, and simplified manageability by leveraging advanced features at the access and aggregation layer of medium and large enterprise networks.
These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable multitenant isolation and greater scalability; high availability and resiliency provided by Distributed Resilient Network Interconnect (DRNI), Intelligent Resilient Framework (IRF), Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD). Real-time network health, network and switch performance and visibility provided with Intelligent Management Center (IMC) and Intelligent Network Quality Analyzer (iNQA). Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features provides investment protection and eases transition from IPv4 to IPv6 networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 5.0 |
Power Description
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 27 W |
| Number of Power Supplies Supported | 2 |
Network & Communication
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ae |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1r | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.2 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3ah | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1ad | |
| IEEE 802.1ak | |
| IEEE 802.1AX |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 1 x Expansion Slot | |
| 4 x 10 Gigabit Ethernet Expansion Slot |
Physical Characteristics
| Weight (Approximate) | 7 kg |
| Form Factor | Rack-mountable |
| Cabinet Mount | |
| Height | 43.7 mm |
| Width | 439.9 mm |
| Depth | 359.9 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | R8M26A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch |
| Product Line | FlexNetwork |
| Product Series | 5520 HI |
| Brand Name | HPE |
Price Trend
Current Price
AUD 21,670.00
