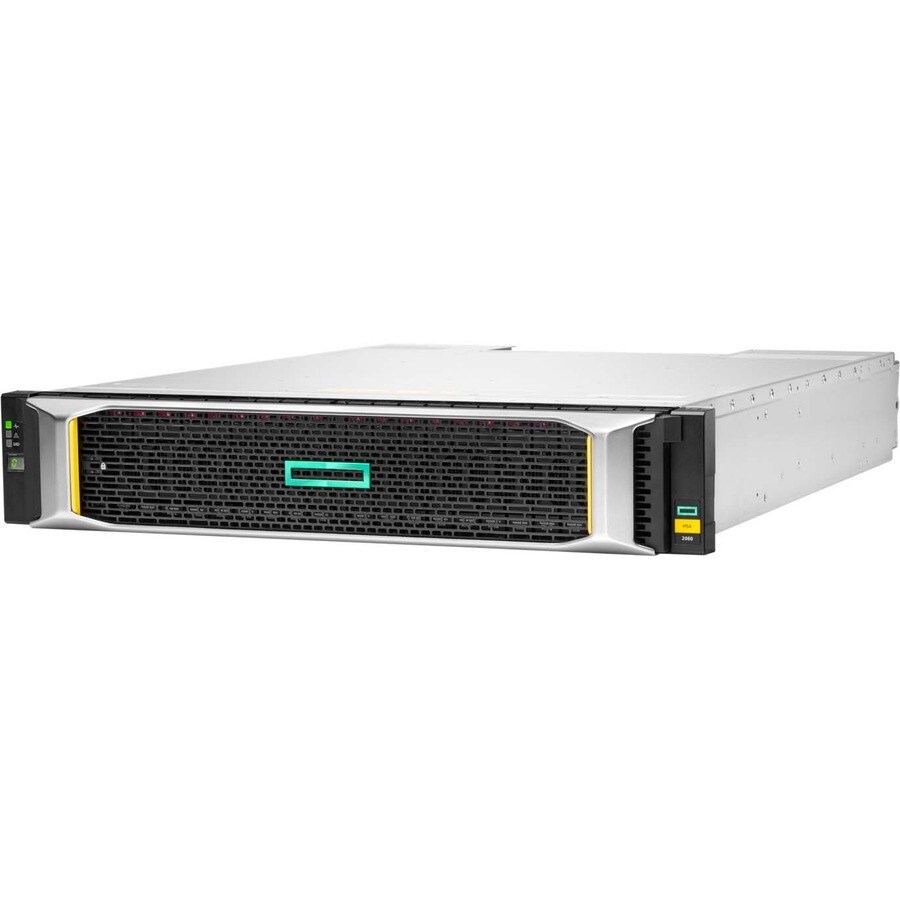

HPE MSA 2060 16GB FC LFF TAA STRG
HPE MSA 2060 16GB FC LFF TAA STRG
Product Overview
HPE 2060 24 x Total Bays SAN Storage System - 72 TB HDD - 2U Rack-mountable - TAA Compliant - 6 x HDD Installed - 72 TB Installed HDD Capacity - iSCSI - Fibre Channel Controller - 8 iSCSI Ports - 8 x RJ-45
Key Features | Accelerate Applications Affordably
The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses.
The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change.
HPE MSA's 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator
The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060's new Storage Management Utility intuitive and easy to navigate.
HPE MSA's automated tiering engine dynamically responds to workload changes so you don't have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time.
Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster
The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap.
Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution.
Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array.
Flexible, Modular Architecture That Facilitates Growth Into the Future
The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array).
Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.
Technical Specifications
Protocols | iSCSI |
Controller Type | Fibre Channel |
Number of Controllers | 2 |
Number of Total Expansion Bays | 24 |
"Number of 2.5"" Bays" | 24 |
TAA Compliant | Yes |
Energy Star | Yes |
Host Interface | iSCSI |
Fibre Channel | Yes |
Number of Network (RJ-45) Ports | 8 |
Network (RJ-45) | Yes |
Number of iSCSI Ports | 8 |
Total Hard Drive Capacity Installed | 72 TB |
Number of Hard Drives Supported | 24 |
Number of Hard Drives Installed | 6 |
Number of Solid State Drive Supported | 24 |
Number of Solid State Drive Installed | 0 |
Weight (Approximate) | 5 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 88.9 mm |
Width | 444.5 mm |
Depth | 508 mm |
Product Type | SAN Storage System |
Manufacturer Part Number | R9G39A |
Manufacturer Website Address | https://www.hpe.com/au/ |
Manufacturer | Hewlett Packard Enterprise |
Product Model | 2060 |
Product Name | MSA 2060 16Gb Fibre Channel LFF TAA-compliant Storage |
Product Series | 2000 |
Brand Name | HPE |
