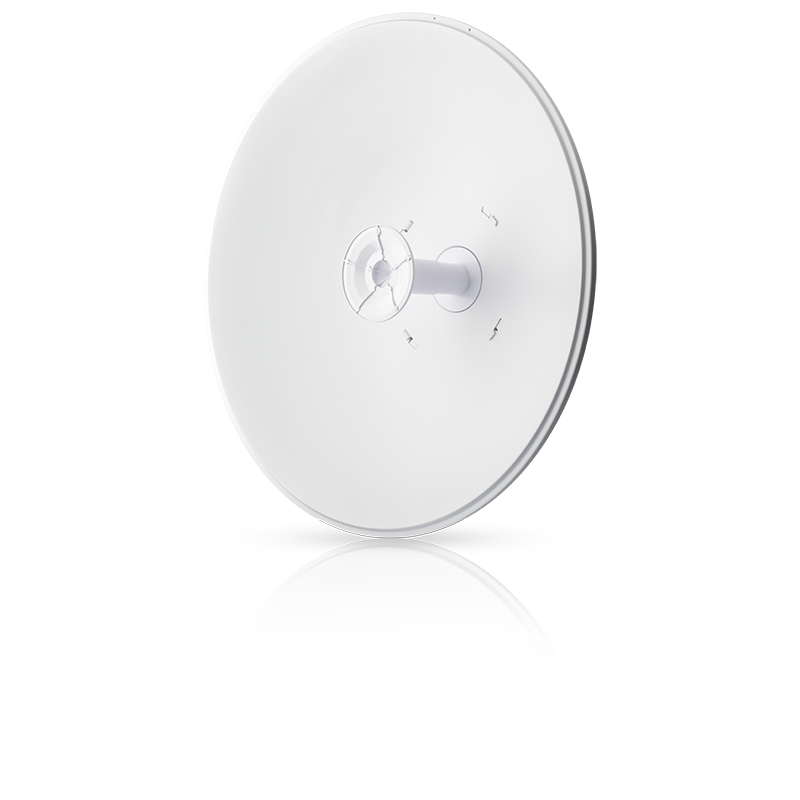

RD-5G30-LW
Product Overview
| RD-5G30-LW | |
|---|---|
| Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2") |
| Weight | 7.4 kg (16.31 lb) |
| Frequency Range | 5.1 - 5.9 GHz |
| Gain | 30 dBi |
| HPOL Beamwidth | 5.8° (3 dB) |
| VPOL Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
Technical Specifications
| RD-5G30-LW | |
|---|---|
| Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2") |
| Weight | 7.4 kg (16.31 lb) |
| Frequency Range | 5.1 - 5.9 GHz |
| Gain | 30 dBi |
| HPOL Beamwidth | 5.8° (3 dB) |
| VPOL Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
