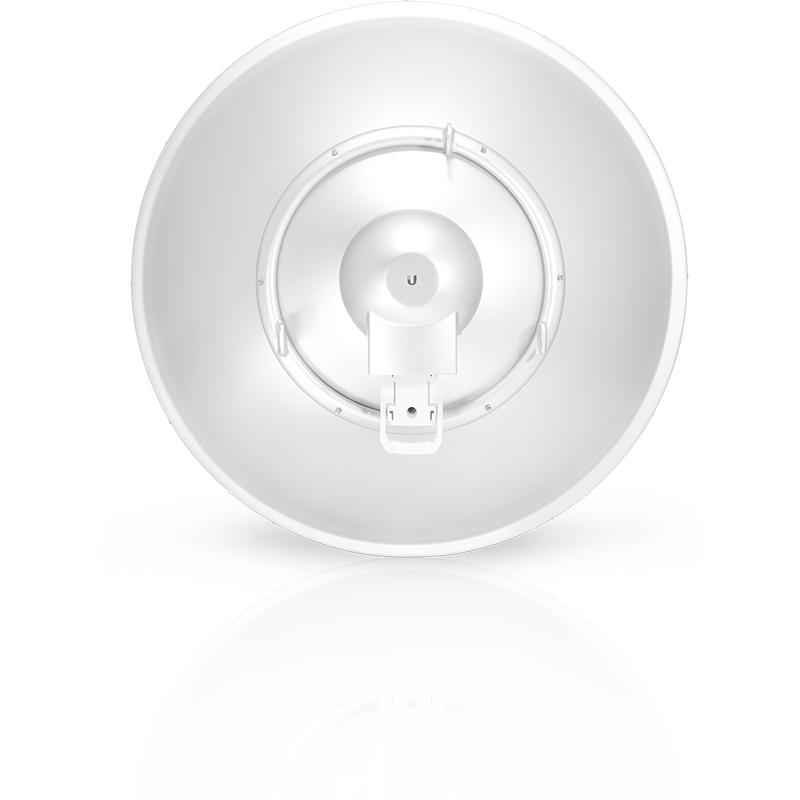

RD-5G31-AC
Product Overview
| RD-5G31-AC | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74") |
| Weight | With Mount: 7.6 kg (16.76 lb) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
Technical Specifications
| RD-5G31-AC | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74") |
| Weight | With Mount: 7.6 kg (16.76 lb) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
