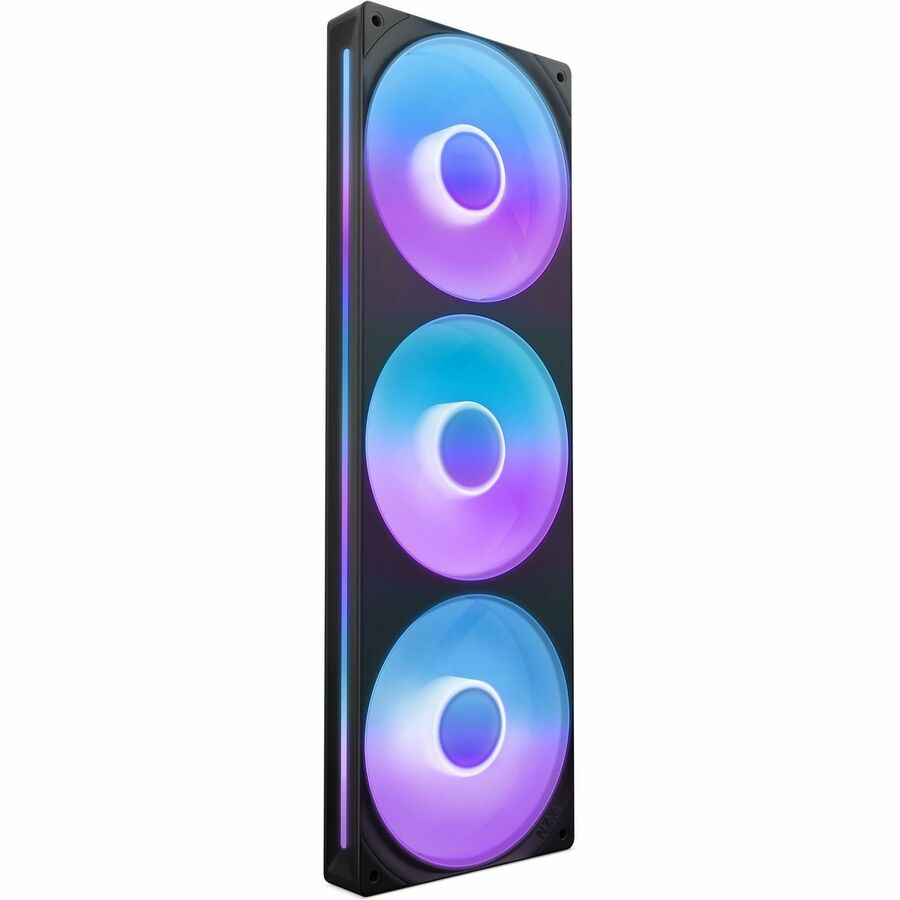

F360RGB CORE FAN SINGLE FRAME - BLACK
F360RGB CORE FAN SINGLE FRAME - BLACK
Product Overview
NZXT RF-U36HF-B1 Cooling Fan - Motherboard - 360 mm Maximum Fan Diameter - 3 x Fan(s) - 2127.2 L/min Maximum Airflow - 2400 rpm - Fluid Dynamic Bearing - 4-pin PWM, 8-pin - RGB LED - Black - PCBs (Polychlorinated Biphenyls), Plastic, Rubber - Retail - 6.8 Year Life
ABOUT THE PRODUCT
NZXT F Series RGB Core single-frame fans combine multiple fans in one design for streamlined installation, cooling, and control.
PWM fans with fluid dynamic bearings ensure efficient performance with minimal noise, while personalizable RGB LEDs illuminate through the blades for a captivating effect.
FEATURES | HIGH PERFORMANCE. | LOW NOISE.
Optimized for cooling, the integrated fans balance airflow and static pressure. Minimal blade-to-edge gap boosts efficiency. Fluid dynamic bearings with Zero RPM Mode ensure quiet, durable operation.
SIMPLE INSTALLATION
Single-frame design simplifies installation and digital control. Connect a single cable to an NZXT RGB & Fan Controller (sold separately) to use CAM software or use the included splitter for motherboard connection.
RADIANT RGB
Eight RGB LEDs per fan illuminate semi-translucent blades. Personalize and sync lighting with NZXT CAM for a unified NZXT product aesthetic.
- The flawless rotation of fan blades is just what you need for prolonged cooling
- Helps the compatible motherboards by maintaining a great balance of performance and efficiency
- Features fluid dynamic bearing to improve longevity, silence, and stability
- Colourful rgb LEDs add an ultra-modern style
Technical Specifications
| Maximum Power Consumption | 9.48 W |
| Connectors | 8-pin |
| 4-pin PWM |
| Application/Usage | Motherboard |
| Package Contents |
|
| Fan Life | 6.8 Year |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Number of Fans | 3 |
| Maximum Air Pressure | 3.3mmH2O |
| LED Color | RGB |
| Maximum Airflow | 2127.2 L/min |
| Fan Speed (Min) | 500 rpm |
| Fan Speed (Max) | 2400 rpm |
| Noise Levels (A-Weighted) | 30 dB(A) |
| Product Type | Cooling Fan |
| Manufacturer Part Number | RF-U36HF-B1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Manufacturer | NZXT Corporation |
| Product Model | RF-U36HF-B1 |
| Product Name | F360 RGB CORE |
| Package Type | Retail |
| Product Series | F |
| Brand Name | NZXT |
| Fan Height | 360 mm |
| Fan Width | 120 mm |
| Fan Depth | 26 mm |
| Product Color | Black |
| Color Family | Black |
| Maximum Fan Diameter | 360 mm |
| Product Material | Plastic |
| PCBs (Polychlorinated Biphenyls) | |
| Rubber |
