23ft Active HDMI Cable 4K 60Hz
23ft Active HDMI Cable 4K 60Hz
Product Overview

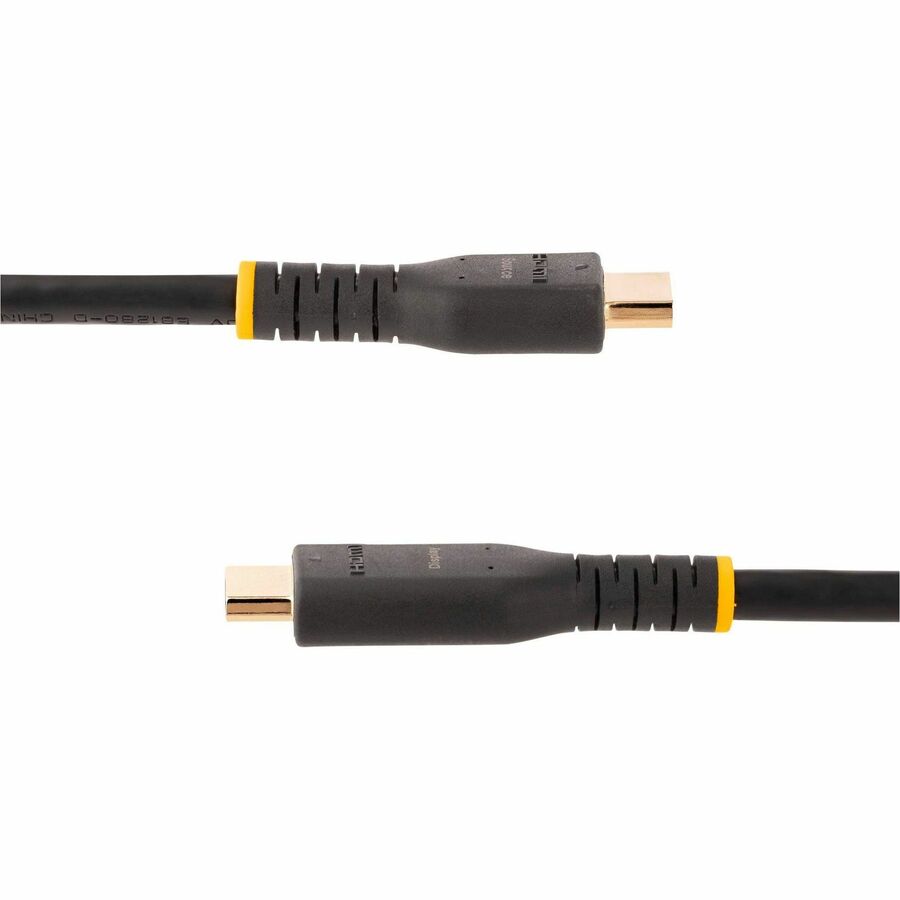

StarTech.com 7m (23ft) Active HDMI Cable, HDMI 2.0 4K 60Hz UHD, Rugged HDMI Cord w/ Aramid Fiber, Heavy-Duty High Speed HDMI 2.0 Cable - 23ft Active HDMI 2.0 Cable with Ethernet supports 4K 60Hz - Built-in amplifier - Directional cable with source/display labels - Heavy-duty 28AWG HDMI cord with TPE jacket and strain reliefs - Long HDMI cable for conference rooms/offices/classrooms
This 23 foot (7 meter) Active HDMI Cable with Ethernet establishes a connection between HDMI-enabled devices over long distances, ideal for in-home and office cable runs.
High-Speed HDMI Cable
This high-speed HDMI cable supports resolutions of up to 4K at 60Hz (4096 x 2160p), 18Gbps bandwidth, High Dynamic Range (HDR10), Audio Return Channel (ARC), and Dolby Vision, for high contrast ratios, and vivid color.
Reliable Connections Over Long Distances
The cable features built-in amplifier circuitry, which actively boosts the HDMI signal, with no external power required. It is the perfect solution for longer transmissions without any signal loss. It features source and display labels on the connectors to ensure the display and source are properly connected.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
- HIGH PERFORMANCE: 23ft (7m) HDMI 2.0 Cable with Ethernet, 4K 60Hz (up to 4096x2160p), 18Gbps bandwidth, HDR10, and 32 channel multi-stream audio with 1536Hz sampling (5.1/7.1/DD+/Dolby TrueHD/Atmos); Directional cable with source/display labels
- ACTIVE CIRCUITRY: Active bus-powered amplifier boosts video signals over longer distances to extend HDMI signal up to 23ft (7m); Supports additional color spaces, such as Adobe RGB and YCC601 Color
- DURABLE CABLE: 100% copper cable (28AWG) with long lasting TPE jacket and strain reliefs absorbs stress of frequent bends, protecting the core of the rugged UHD HDMI cord; TPE is non-toxic, halogen free and RoHS certified for environmental sustainability
- QUALITY CONSTRUCTION: Gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, deliver 4K 60Hz over long distances; Ideal for conference room, offices, or classrooms
- SPECS: 23 feet (7 meters); Color: Black; Version: HDMI 2.0; Connectors: Male to Male; Wire Gauge: 28 AWG; OD: 7.5mm; Cable Jacket: TPE; Shield: Al-Mylar Foil with Copper Braid; Features: ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colorimetry
Technical Specifications
| Environmentally Friendly | Yes |
| Cable Length | 7 m |
| Data Transfer Rate | 18 Gbit/s |
| Device Supported | Audio/Video Device |
| Shielding | Yes |
| Features | Stress Resistant |
| Rugged | |
| Heavy Duty | |
| HDR10 Support | |
| HDMI Ethernet Channel (HEC) | |
| HDCP 2.2 | |
| Halogen Free | |
| EMI Protection | |
| Consumer Electronics Control (CEC) | |
| Bend Resistant | |
| Audio Return Channel (ARC) | |
| Active | |
| Strain Relief | |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Plating | Gold |
| American Wire Gauge | 28 AWG |
| Supported Resolution | 4096 x 2160 |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Braided Copper |
| Aluminum Mylar Foil | |
| Product Color | Black |
| Product Material | Copper |
| Aramid Fiber |
| Product Type | A/V Cable |
| Manufacturer Part Number | RH2A-7M-HDMI-CABLE |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 7m Rugged Active HDMI 2.0 Cable |
| Brand Name | StarTech.com |
