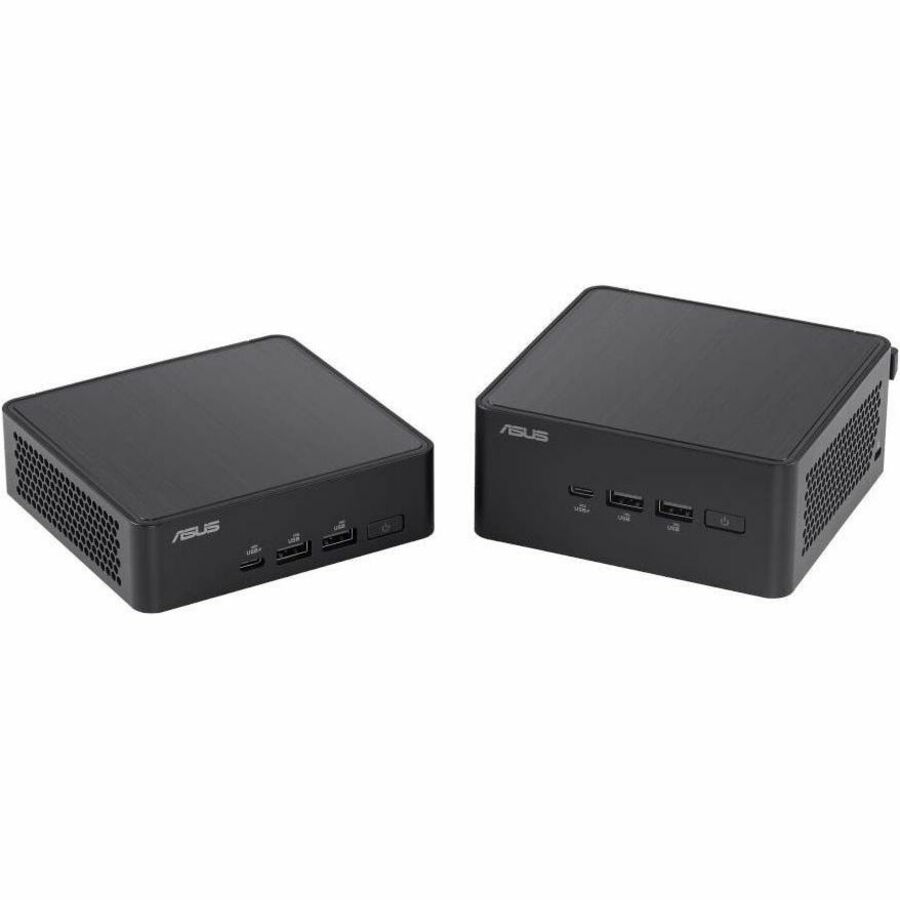

ASUS NUC 14 PRO U5 vPro Barebone TALL
ASUS NUC 14 PRO U5 vPro Barebone TALL
Product Overview
Asus NUC 14 Pro Barebone System - Intel Core Ultra 5 - Intel Chip - 96 GB DDR5 SDRAM DDR5-5600/PC5-44800 Maximum RAM Support - 2.0 Total Memory Slots - NVMe, Serial ATA Controller - Intel Arc Graphics Graphic(s) - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11, Linux Supported Operating System - 120 W
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
- Performance
- : Delivers best-in-class performance among comparable mini-PC offerings
- Manageability
- : Most comprehensive mini-PC with Intel vPro<sup>®</sup>Enterprise for exceptional security, manageability, and stability
- AI Ready
- : Harnesses the prowess of Intel<sup>®</sup>Core™ Ultra processors' three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing
- : Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity
- : Delivers seamless connectivity for certified Bluetooth<sup>®</sup>dongle-free experiences
- Customizable
- : Designed for toolless chassis access making upgrades easier, safer, and faster
Technical Specifications
| Chipset Manufacturer | Intel |
| Maximum Power Supply Wattage | 120 W |
| Controller Type | Serial ATA |
| NVMe |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Operating System Supported | Linux |
| Windows 11 |
| Processor Type | Core Ultra 5 |
| Processor Manufacturer | Intel |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Number of SATA Interfaces | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 5 |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type C (20Gbps) |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of Thunderbolt 4 Ports | 2 |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 2.0 |
| Supported Storage Drive Interfaces | Serial ATA |
| PCI Express NVMe 4.0 | |
| Supported Storage Drive Types | SSD |
| HDD |
| Weight (Approximate) | 570 g |
| Height | 41 mm |
| Width | 144 mm |
| Depth | 112 mm |
| Product Color | Black |
| Color Family | Black |
| Product Type | Barebone System |
| Manufacturer Part Number | RNUC14RVHV500004I |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Name | NUC 14 Pro Barebone System |
| Product Line | NUC 14 Pro |
| Brand Name | Asus |
