Product Overview

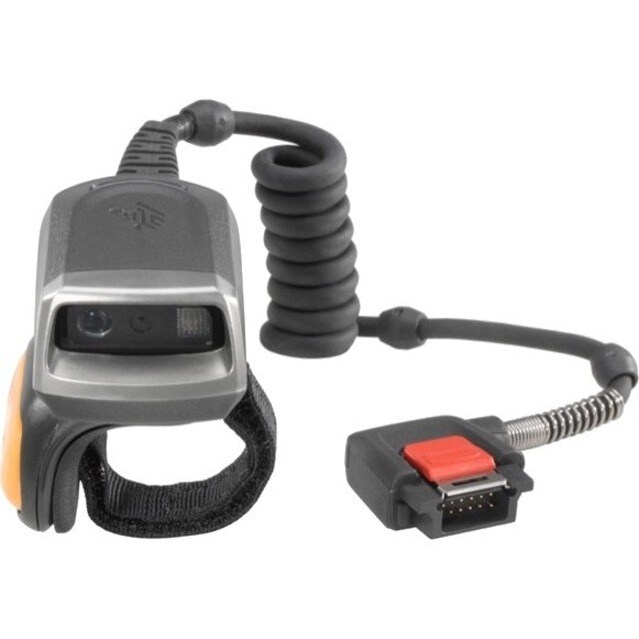

CORDED 2D IMAGER RING SCANNER TO WT6000
MAXIMISE WORKER PRODUCTIVITY AND THE VALUE OF YOUR ZEBRA WEARABLE COMPUTERS WITH THE RS5000The RS5000 ring scanner is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range - a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.
- Perfect for applications that require direct association with a workstation or a notebook
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Scan barcodes with a staggering speed of 116 scan/s
Technical Specifications
Miscellaneous
| Application/Usage | Industrial |
| Retail | |
| Transportation | |
| Manufacturing | |
| Warehouse | |
| Ingress Protection (IP) Rating | IP65 |
Technical Information
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 635 mm |
| Scanner Range | Standard Range |
| Drop Specification | Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range |
| Scan Pattern | Omni-directional |
| Scan Rate | 116 scan/s |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scan Engine Model | SE4710 |
| Scanning Capability | 2D |
| 1D | |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 96900 lux |
| Minimum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.13 mm |
General Information
| Product Type | Barcode Scanner |
| Manufacturer Part Number | RS5000-LCFSWR |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | RS5000 |
| Product Name | RS5000 1D/2D Corded Ring Scanner |
| Brand Name | Zebra |
Physical Characteristics
| Weight (Approximate) | 76 g |
| Form Factor | Wearable |
| Length | 50.8 mm |
| Width | 32 mm |
| Depth | 27.9 mm |
| Product Color | Dark Grey |
| Color Family | Grey |
| Rugged | Yes |
