RT33 3-3PHASE RACK/TOWER 25KVA/25KW

RT33 3-3PHASE RACK/TOWER 25KVA/25KW

RT33 3-3PHASE RACK/TOWER 25KVA/25KW

Product Overview

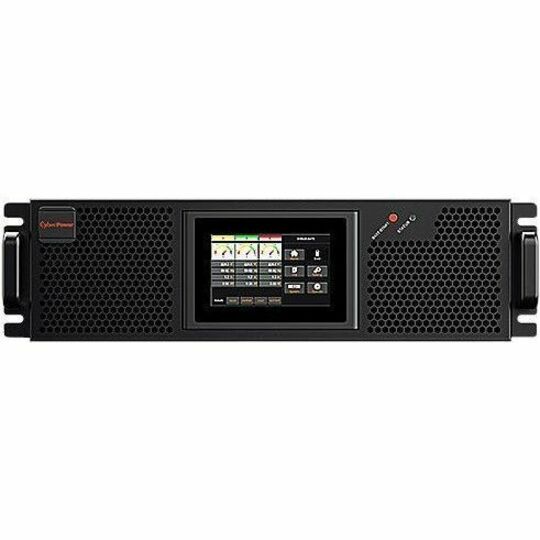

CyberPower RT33025KE Double Conversion Online UPS - 25 kVA/25 kW - Three Phase - Rack/Tower - 230 V AC, 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port - LCD Display

Reliable power backup with flexible configuration suitable for servers and data centers

Designed for office, back office, server room and data center application, the RT33 (3-Phase) Series adopts double conversion online topology to offer ideal power solution. The products are compatible with 19" standard rack cabinet. The systems also intelligently control the whole process of the charging and discharging. Last but not least, the systems can be flexibly configured to 3-in/3-out and 3-in/1-out according to the users' needs.

SERIES FEATURES

  • Three-phase Design
  • Online (Double Conversion) UPS Topology
  • ECO Mode
  • High Density Design
  • Flexible System Configuration
  • High Output Power Factor*
  • Rack Modular Design
  • LCD Touch Panel
  • Color LCD Panel
  • Dual Inputs
  • UPS Parallel Expansion
  • Generator Compatible
  • Pure Sine Wave Output
  • Battery Cold Start
  • SNMP/HTTP Remote Management Capability (Optional)
  • PowerPanel Management Software

Technical Specifications

Controls/Indicators
Status Indicators

    LCD Display:

    • Operation Type
    • Power Status
    • Battery Status
    • Load Status
    • Fault & Warning
    • Other Information
    • Event & Log
Display & Graphics
DisplayLCD
Interfaces/Ports
Serial PortYes
Miscellaneous
Certifications & Standards
    • IP20
    • CE
    • BSMI
    • IEC62040-1
    • IEC62040-2
Environmental ComplianceTaiwan Restriction of Hazardous Substances (Taiwan RoHS)
Battery Information
Battery Size12V
Number of Batteries40
Battery CharacteristicsVRLA/AGM/Gel/Wet
Management
Network ManagementSNMP/HTTP Remote Monitoring
RS-485
RS-232
Relay (Dry Contact) Card
Dry Contact
Technical Information
Application/UsageServer Room
Office
Generator
Data Center
Overload ProtectionYes
PhaseThree Phase
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberRT33025KE
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product ModelRT33025KE
Product NameRT33025KE 25000VA Rack/Tower UPS
Product SeriesRT33
Brand NameCyberPower
Power Description
Input Voltage400 V AC
380 V AC
230 V AC
415 V AC
120 V AC
Waveform TypePure Sine Wave
Input Voltage Range228 V AC - 478 V AC
132 V AC - 276 V AC
Input Power Factor0.99
Output Power Factor1

Price Trend

Current Price
AUD 7,535.45
