HPE NW CW 5120V3 8G POE 2 SFP+ SW AU EN
HPE NW CW 5120V3 8G POE 2 SFP+ SW AU EN
Product Overview

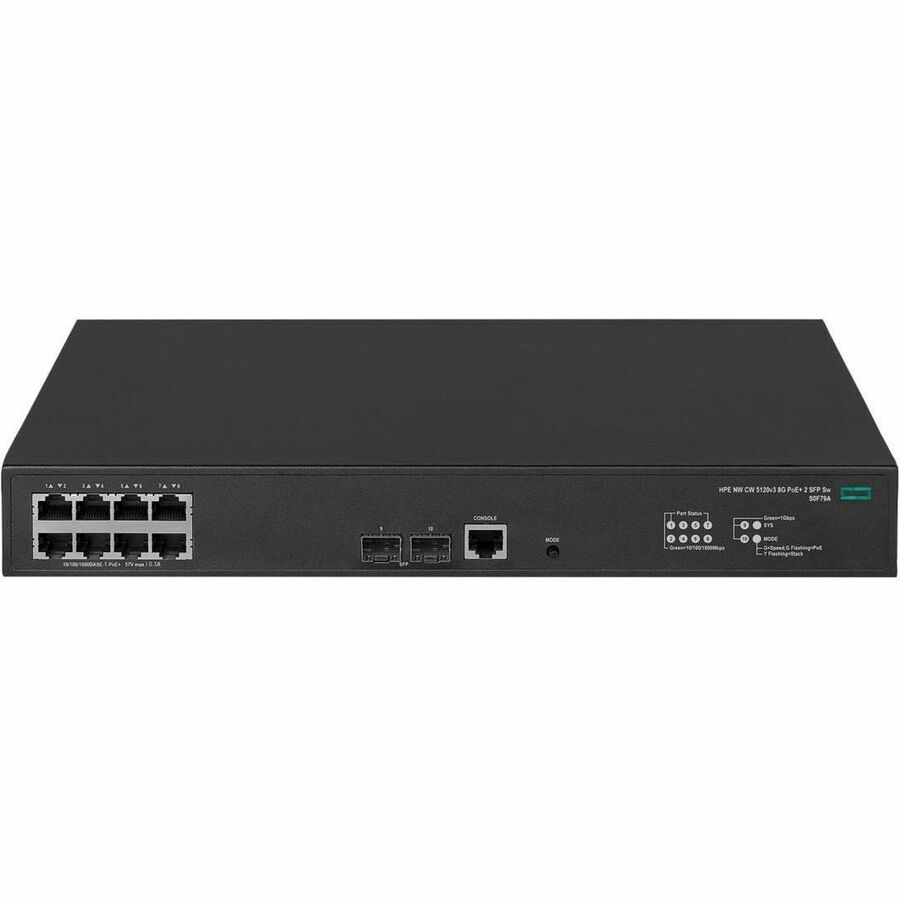

HPE Comware 5120 v3 8 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 2 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty
HPE Networking Comware 5120 v3 Campus Switch Series
HPE Networking Comware 5120v3 Campus Switch Series offers cost-effective high-performance Gigabit Ethernet connectivity tailored for small organizations with limited IT personnel. PoE+ ports seamlessly support voice, video, and wireless applications. Fanless design helps ensures silent operation while the compact size allows flexible placement options. Embedded power supplies help minimize heat dissipation, promoting a cool and reliable networking environment.
These switches offer advanced functionalities such as IRF stacking that enables higher redundancy and reliability, while access control lists (ACLs) empower network administrators to enforce security policies, manage traffic, and safeguard network resources.
This switch series also includes SmartMC at no additional cost, and when combined with HPE Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.
- Low cost, Gigabit Ethernet access switch for small- to medium-sized organizations with Layer 2 routing, RIP, and PoE+ models for voice, video, and wireless.
- Fanless switch with embedded power supplies offers the advantages of low power consumption, noise-free operation, and reduced heat dissipation.
- MAC address support of up to 16K enables greater scalability as more devices can be added into the network and access policies can be defined as per their MAC addresses leading to greater network security.
- Supports HPE Intelligent Resilient Framework (IRF) technology that enables plug-and-play device aggregation and link aggregation of up to 9 devices, enhancing network redundancy and resource utilization.
- Supports SNMP-based centralized network management with HPE Intelligent Management Center for consistent network manageability and CLI, Telnet, and web-based network management for easier device management.
- Includes embedded network management capabilities at no additional cost with Smart Management Center (SmartMC)
- Includes energy-saving green design features such as automatically switching off idle copper ports to energy-saving mode and powering down unused ports.
Technical Specifications
| Manageable | Yes |
| Features | Fanless |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Stack Port | Yes |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet Network |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1AX |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1r | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ad | |
| IEEE 802.1ak |
| Network Technology | 1000Base-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Application/Usage | Enterprise |
| Campus | |
| Network | |
| Office | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 3 kg |
| Form Factor | Cabinet Mount |
| Rack-mountable | |
| Height | 230 mm |
| Width | 330 mm |
| Depth | 43.6 mm |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | AC |
| Power Supply | |
| Frequency | 50 Hz |
| 60 Hz |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | S0F79AABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | Comware 5120 v3 Ethernet Switch |
| Product Line | Comware |
| Product Series | 5120 v3 |
| Brand Name | HPE |
