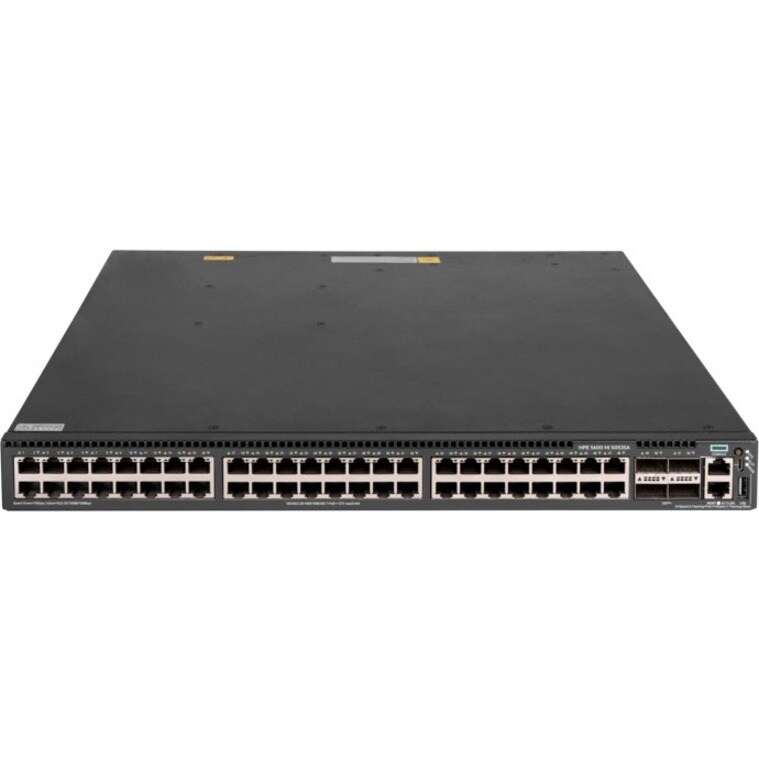

HPE 5600HI 48P POE8 MGIG 4QSFP+ 1S SW
HPE 5600HI 48P POE8 MGIG 4QSFP+ 1S SW
Product Overview
HPE FlexNetwork 5600 HI 48 Ports Manageable Ethernet Switch - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - Modular - 65.10 W Power Consumption - 90 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable, Cabinet Mount
HPE FlexNetwork 5600HI Switch Series
The HPE FlexNetwork 5600 HI Switch Series delivers high-performing Multigigabit, PoE8, MACsec AES 256 encryption(through additional modules), link flexibility, and scalability at the access layer of medium and large enterprise campus networks.
The ports on these switches offer efficient application of these features and support add-on modules with advanced features and increased capacity. These include:
- DRNI and IRF provide improved resiliency
- Quality of service (QoS) features drive better reliability Intelligent Network Quality Analyzer (iNQA) helps in real-time network health performance and capacity visibility
- Hardware-based MACsec and AAA authentication enable end-to-end encrypted security
- Dual redundant power supplies with Energy Efficient Ethernet lead to improved power saving
This Switch Series also includes Smart Management Center (SmartMC) at no additional cost and combined with HPE Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
- Multigigabit 100M/1/2.5/5/10G options with PoE8. Granular, higher throughput, and switching capacity of up to 600 Mpps and 1440 Gbps, supports higher traffic rates enabling improved network performance.
- DRNI combines multiple physical switches into one virtual distributed-relay system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
- Industry-standard MACsec AES 256 support, higher MAC port binding, AAA authentications (including RADIUS authentication), and link group capacity for improved end-to-end network security is available with additional modules.
- iNQA measures network packet loss performance and provides visibility into real-time application performance and health.
- SmartMC provides centralized network management and maintains dispersed network edge devices at no additional cost.
- VXLAN and EVPN enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Technical Specifications
| Manageable | Yes |
| Expansion Slot Type | QSFP+ |
| Total Number of Expansion Slots | 4.0 |
| Modular | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x 10 Gigabit Ethernet Network Port |
| 1 x Expansion Slot | |
| 4 x 10 Gigabit Ethernet Expansion Slot |
| Network Technology | 10GBase-X |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3af | |
| IEEE 802.3ad | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3ab | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ac | |
| IEEE 802.1ad | |
| IEEE 802.1ae | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1r | |
| IEEE 802.1s | |
| IEEE 802.1v | |
| IEEE 802.1w |
| Application/Usage | Network |
| Enterprise | |
| Business | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 6.05 kg |
| Form Factor | Rack-mountable |
| Cabinet Mount | |
| Height | 440 mm |
| Width | 460 mm |
| Depth | 43.6 mm |
| Compatible Rack Unit | 1U |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | S0S35A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | FlexNetwork 5600HI 48P 100M/1G/2.5G/5G/10GBase-T PoE8 4QSFP+ 1 Slot Switch |
| Product Line | FlexNetwork |
| Product Series | 5600 HI |
| Brand Name | HPE |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 65.10 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90 W |
