Product Overview

StarTech.com Drive Slot Adapter SATA/600 - Serial ATA/600 Host Interface Internal - Black - 1 x HDD Supported - 1 x SSD Supported - 1 x Total Bay - 1 x 2.5" Bay - Aluminium

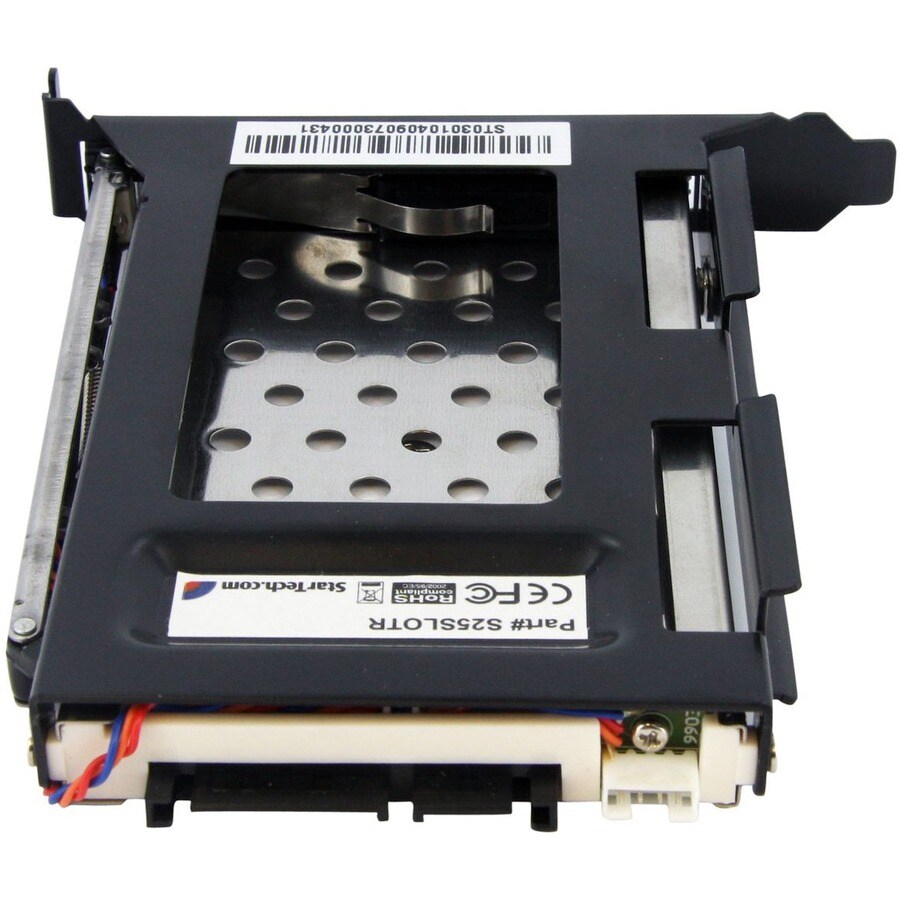

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.

Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.

  • Takes minimal energy and effort to get installed internally
  • Whether you're looking to increase your drive storage capacity, or add external storage; the drive slot adapter opens a new world of storage convenience

Technical Specifications

Controllers
Controller TypeSerial ATA/600
Interfaces/Ports
Host InterfaceSerial ATA/600
Network & Communication
Wireless LANNo
I/O Expansions
Number of Total Expansion Bays1
"Number of 2.5"" Bays"1
General Information
Product TypeDrive Slot Adapter
Manufacturer Part NumberS25SLOTR
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product Name2.5in SATA Removable HDD Bay for PC Slot
Brand NameStarTech.com
Miscellaneous
Additional Information
    • Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay
    • Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack
    • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Certifications & Standards
    • CE
    • FCC
Environmentally FriendlyYes
Physical Characteristics
Form FactorInternal
Product ColorBlack
Product MaterialAluminium
Steel
Technical Information
Number of Hard Drives Supported1
Number of Hard Drives InstalledNo
Number of Solid State Drive Supported1
Number of Solid State Drive InstalledNo
