HPE ANW 6300L 24SRX CL6 2L 2Y L2 SW
HPE ANW 6300L 24SRX CL6 2L 2Y L2 SW

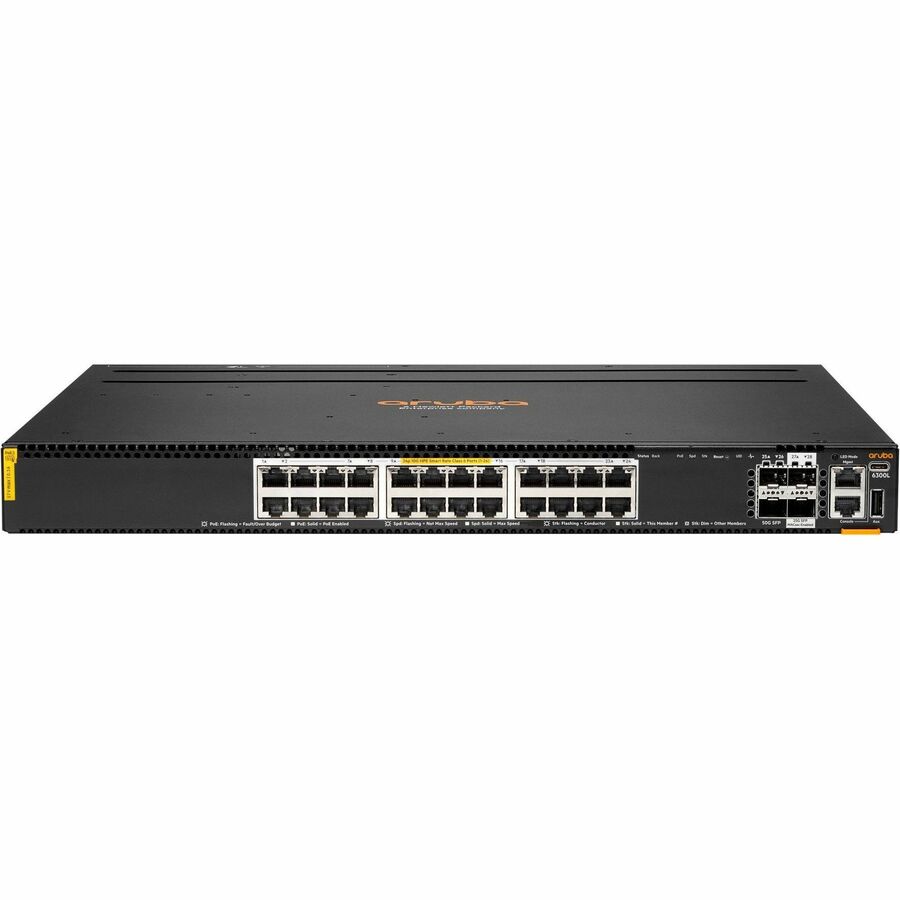

Product Overview
Aruba CX 6300 6300L 24P 24 Ports Manageable Layer 3 Switch - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 10GBase-X, 25GBase-X, 50GBase-X - Black - 3 Layer Supported - 2.88 kW PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U High - Rack-mountable
HPE Aruba Networking 6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Technical Information
| Features | Hot-swappable |
I/O Expansions
| Expansion Slot Type | SFP28 |
| SFP56 | |
| Total Number of Expansion Slots | 4 |
Network & Communication
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3bt | |
| IEEE 802.3af |
Miscellaneous
| Application/Usage | IoT Devices |
| Data Center | |
| Network | |
| Energy Star | No |
| TCO Certified | No |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | S3L75A |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 6300L 24P |
| Product Name | 6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch |
| Product Series | CX 6300 |
| Brand Name | Aruba |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | PoE |
| Power Supply | |
| PoE++ | |
| Frequency | 50 Hz |
| 60 Hz | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 2.88 kW |
Physical Characteristics
| Weight (Approximate) | 6.02 kg |
| Form Factor | Rack-mountable |
| Height | 43.2 mm |
| Width | 442 mm |
| Depth | 386.1 mm |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 PoE Network Port |
| 2 x 10/25/50 Gigabit Ethernet SFP56 Expansion Slot | |
| 2 x 10/25 Gigabit Ethernet SFP28 Expansion Slot | |
| 1 x USB-C Console Port | |
| 1 x USB Type A Host Port | |
| 1 x OOBM Port | |
| 1 x RJ Console Port |
Media & Performance
| Network Technology | 2.5GBase-T |
| 5GBase-T | |
| 25GBase-X | |
| 50GBase-X | |
| 10GBase-X | |
| 10GBase-T | |
| 100/1000Base-T | |
| Maximum Data Transfer Rate | 6.25 GB/s |
| Ethernet Technology | 25 Gigabit Ethernet |
| Gigabit Ethernet | |
| 50 Gigabit Ethernet | |
| 5 Gigabit Ethernet | |
| 2.5 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Price Trend
Current Price
AUD 29,811.00
