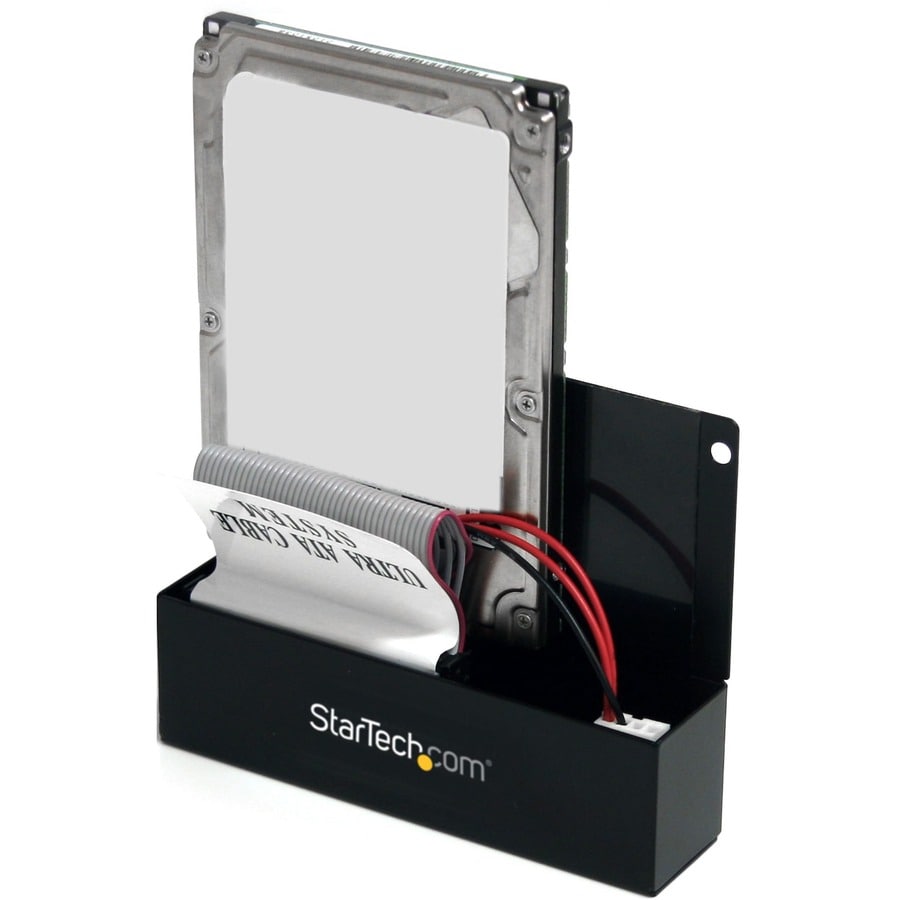

SATA to 2.5/3.5 IDE Hard Drive Adapter

SATA to 2.5/3.5 IDE Hard Drive Adapter

SATA to 2.5/3.5 IDE Hard Drive Adapter

Product Overview

StarTech.com IDE to SATA Adapter - 1 x HDD Supported - 1 x Total Bay - 1 x 2.5"/3.5" Bay - Steel

The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives) can be used to greatly enhance your computer's storage/backup capabilities.

Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.

Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speeds of up to 5Gbps, making it the fastest way to access data from an external drive. Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.

o ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating system platforms, including: Microsoft Windows, Apple OSX, Linux, and Google Chrome OS

  • Takes minimal energy and effort to get installed internally
  • Effortlessly transform bay drives to accommodate HDDs or SSDs, with the drive bay adapter

Technical Specifications

Physical Characteristics
Product ColorBlack
Product MaterialSteel
General Information
Product TypeIDE to SATA Adapter
Manufacturer Part NumberSAT2IDEADP
Manufacturer Website Addresshttp://www.startech.com/au
Packaged Quantity1
ManufacturerStarTech.com
Product NameSATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
Brand NameStarTech.com
Miscellaneous
Additional Information
    • Connector Type(s): 1 - SP4 (4 pin, Small Drive Power)
    • Drive Connectors: 1 - LP4 (4 pin; Large Drive Power); 1 - IDE (40 Pin, EIDE/PATA); 1 - IDE (44 Pin, EIDE/PATA, 2.5" HDD)
    • Host Connectors: 1 - SATA Power (15 pin); 1 - SATA (7 pin, Data)
    • Number of Drives: 1
    • Drive Size: 2.5in & 3.5in
    • Compatible Drive Types: IDE (ATA)
    • Drive Installation: Fixed
    • Fan(s): No
    • Chipset ID: JMicron - JM20330
    • LBA support: 48-bit
Certifications & Standards
    • FCC
    • CE
Country of OriginChina
