APC SERVICE BYPASS PANEL 230V
APC SERVICE BYPASS PANEL 230V
Product Overview

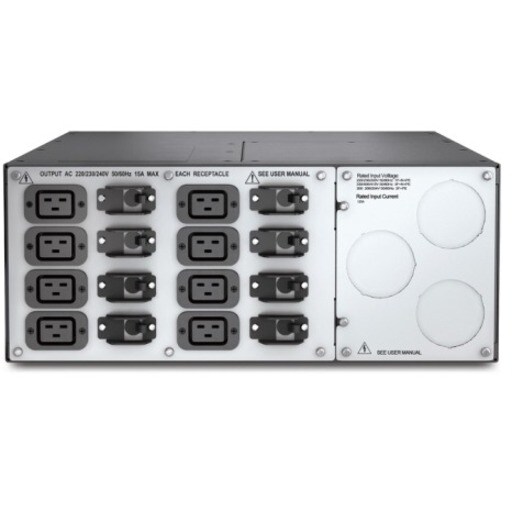

APC Service Bypass Panel - 230V MBB 125A HW input IEC-320 output (8) C19
Smart-UPS accessories include various backplate PDU options, external standard and switched PDU options, matching battery cabinets for extending run time(Smart-UPS XL only), management devices, service products and mounting options. These accessories can customize your solution to increase availability, adaptability, serviceability, manageability and performance.
Technical Specifications
Power Description
| Input Voltage | 220 V AC |
| Current | 125 A |
| Load Capacity (VA) | 20 kW |
Technical Information
| Protection Type | Overload |
| Plug/Connector Type | Hard Wire 3-wire |
| Hard Wire 5-wire |
Physical Characteristics
| Weight (Approximate) | 18.78 kg |
| Form Factor | Rack-mountable |
| Height | 178 mm |
| Width | 432 mm |
| Depth | 572 mm |
| Product Color | Black |
| Color Family | Black |
General Information
| Product Type | Bypass Panel |
| Manufacturer Part Number | SBP20KRMI4U |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Service Bypass Panel |
| Brand Name | APC by Schneider Electric |
Miscellaneous
| Package Contents |
|
| Compatibility | APC Smart-UPS |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Price Trend
Current Price
AUD 4,700.00
