MSA Compliant 100Base-LX SFP - SM 10 km
MSA Compliant 100Base-LX SFP - SM 10 km
Product Overview
StarTech.com SFP - 1 x LC Duplex 100Base-LX Network - 1 Pack - For Optical Network, Data Networking - Optical Fiber - Single-mode - Fast Ethernet - 100Base-LX - Hot-swappable

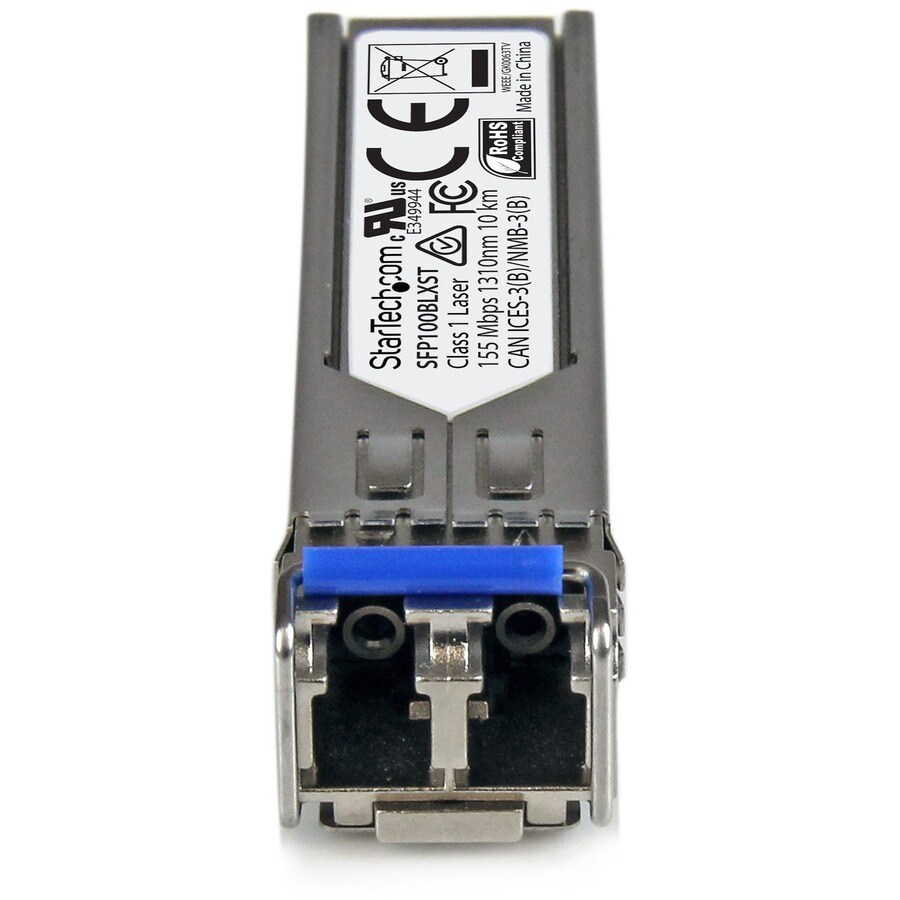

The SFP100BLXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:- Wavelength: 1310nm
- Maximum Data Transfer Rate: 155 Mbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- Power Consumption: Less than 1 Watt
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- Fast Ethernet technology - An ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- With a single wavelength of light, the single mode fibre optic can carry data and transmit audio/video applications over miles of distance
- Optical fibre cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With 100Base-LX technology, enjoy up to 100Mbps data transfer rate over optical fibre cable
Technical Specifications
| Total Number of Ports | 1 |
| Compatibility | MSA Compliant |
| Product Type | SFP |
| Manufacturer Part Number | SFP100BLXST |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | SFP Module |
| Brand Name | StarTech.com |
| Application/Usage | Data Networking |
| Optical Network |
| Network Technology | 100Base-LX |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Weight (Approximate) | 31.2 g |
| Height | 12.7 mm |
| Width | 15.2 mm |
| Depth | 58.4 mm |
