Gigabit Fiber SFP Transceiver SM LC 20km
Gigabit Fiber SFP Transceiver SM LC 20km
Product Overview

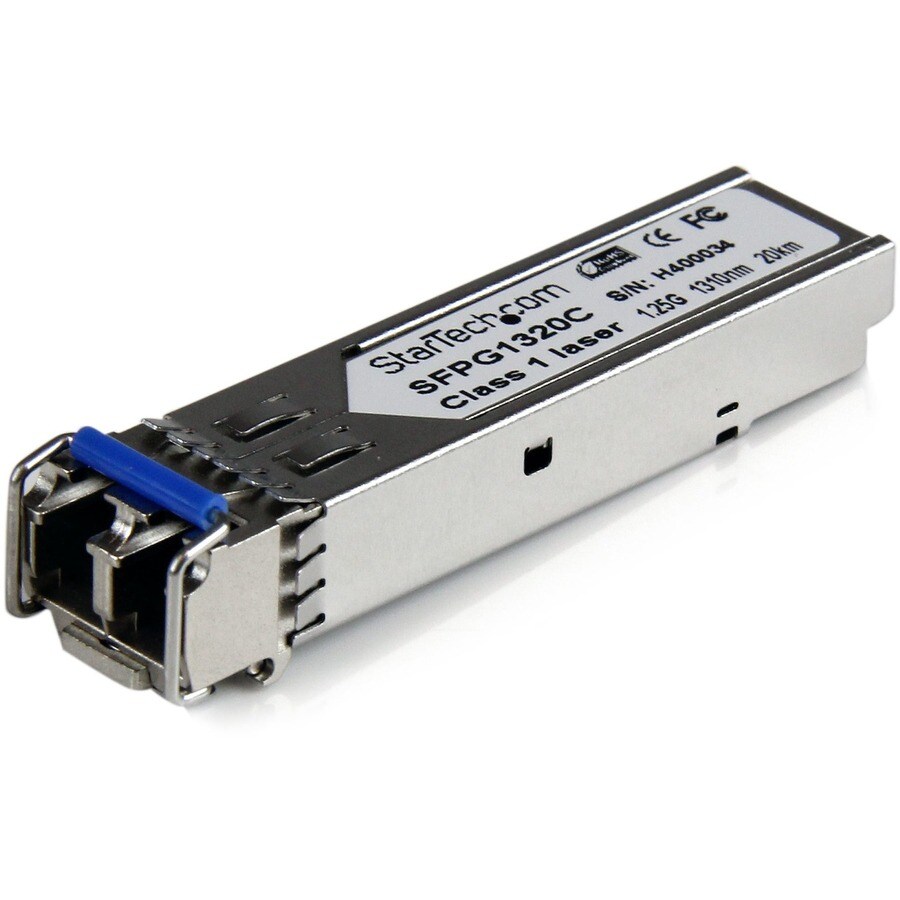

StarTech.com SFP (mini-GBIC) - 1 x LC Duplex 1000Base-LH Network - For Data Networking, Optical Network - Optical Fiber - Single-mode - 1.25 Gigabit Ethernet - 1000Base-LH - Hot-pluggable, Hot-swappable
The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
- Wavelength: 1310nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- MTBF: 2,722,277 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- With a single wavelength of light, the single mode fibre optic can carry data and transmit audio/video applications over miles of distance
- Optical fibre cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With 1000Base-LH technology, enjoy up to 1000Mbps data transfer rate over optical fibre cable
Technical Specifications
| Total Number of Ports | 1 |
| Application/Usage | Data Networking |
| Optical Network |
| Network Technology | 1000Base-LH |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Weight (Approximate) | 19.8 g |
| Height | 10.2 mm |
| Width | 12.7 mm |
| Depth | 61 mm |
| Additional Information |
|
| Compatibility |
Cisco Firepower Switches: |
| Environmentally Friendly | Yes |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | SFPG1320C |
| Manufacturer Website Address | http://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | 1.25 Gbps Gigabit 1310nm GBIC SM LC Fiber SFP Transceiver w/ DDM - 20km |
| Brand Name | StarTech.com |
