Gb MM SFP Fiber Optical Transceiver LC
Gb MM SFP Fiber Optical Transceiver LC
Product Overview

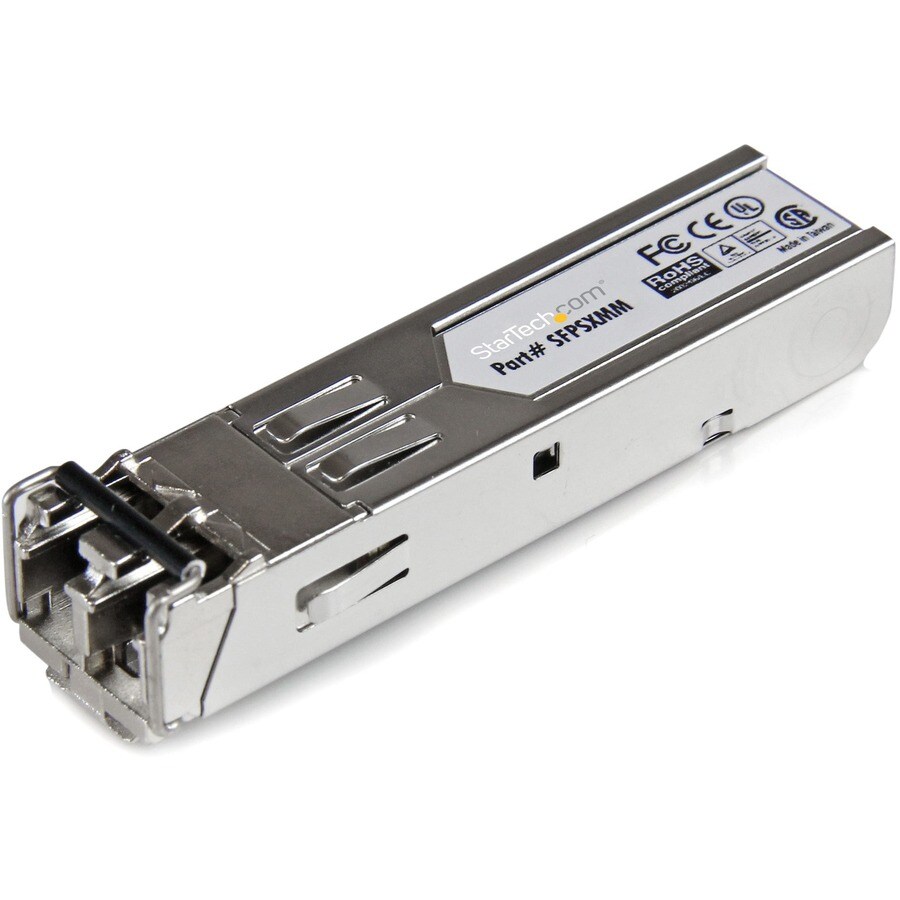

StarTech.com SFP (mini-GBIC) - 1 x LC Duplex 1000Base-SX x Network - 1 Pack - TAA Compliant - For Data Networking, Optical Network - Optical Fiber - Multi-mode - 1.25 Gigabit Ethernet - 1000Base-SX - Hot-swappable
The SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 78,286 hours
- Power Consumption: Less than 1 Watt
- DDM: No
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- Typically used for short distance, multi-mode fibre optic is ideal to carry data and transmit audio/video applications within a building
- Optical fibre cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fibre cable
Technical Specifications
| Total Number of Ports | 1 |
| Application/Usage | Data Networking |
| Optical Network |
| Network Technology | 1000Base-SX |
| Maximum Data Transfer Rate | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Additional Information |
Compatibility: |
| Compatibility | MSA compliant |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 17 g |
| Height | 10.2 mm |
| Width | 12.7 mm |
| Depth | 55.9 mm |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | SFPSXMM |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | MSA Compliant SFP Transceiver Module - 1000BASE-SX |
| Brand Name | StarTech.com |
