Product Overview

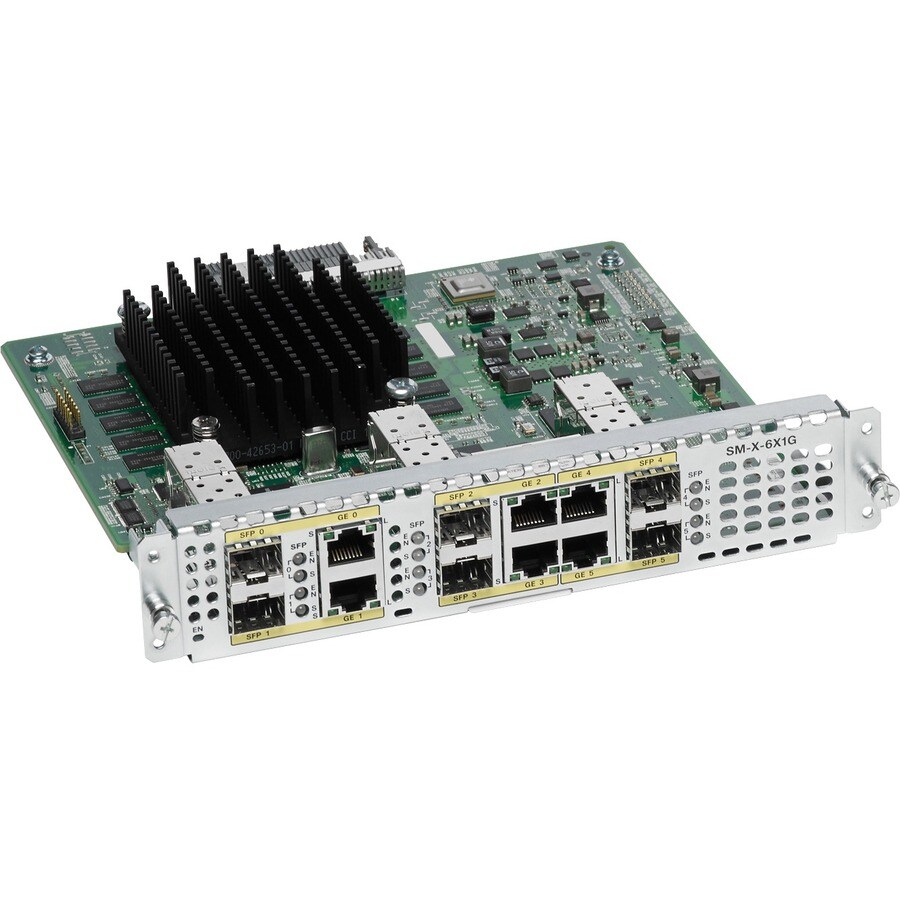

SM-X module with 6-port dual-mode GE / SFP
Cisco Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.
The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.
Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).
- Gigabit Ethernet port for ultra-fast network speeds
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100/1000Base-TX technology, get up to 1000Mbps data transfer rate over twisted pair cable
Technical Specifications
| Total Number of Ports | 6 |
| Compatibility | Cisco 4000 Series Integrated Services Router |
| Expansion Slot Type | SFP (mini-GBIC) |
| Total Number of Expansion Slots | 6.0 |
| Product Type | Service Module |
| Manufacturer Part Number | SM-X-6X1G= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Name | 6-Port Gigabit Ethernet, Dual-mode GE/SFP, SM-X Module |
| Brand Name | Cisco |
| Application/Usage | Data Networking |
| Optical Network |
| Weight (Approximate) | 872 g |
| Height | 39.9 mm |
| Width | 206 mm |
| Depth | 207 mm |
| Network Technology | 1000Base-X |
| 10/100/1000Base-TX | |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
