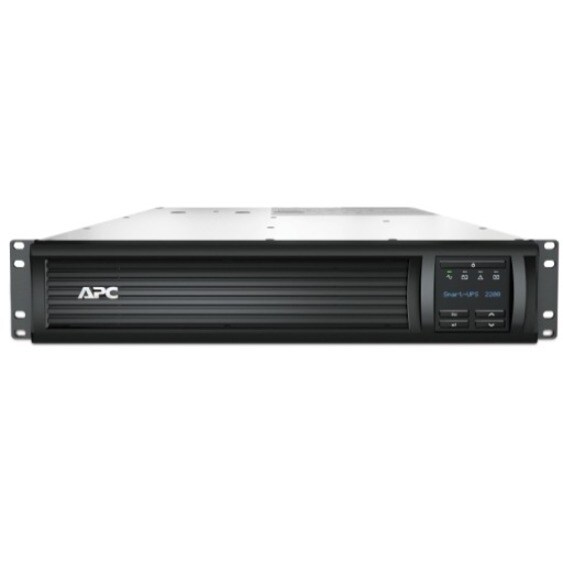

APC Smart-UPS 2200VA LCD RM 2U 230V with
APC Smart-UPS 2200VA LCD RM 2U 230V with
Product Overview
APC by Schneider Electric Smart-UPS Line-interactive UPS - 2.20 kVA/1.98 kW - 2U Rack-mountable - 3 Hour Recharge - 5.50 Minute Stand-by - 230 V AC Input - 230 V AC, 230 V AC, 240 V AC Output - 1 x IEC 60320 C19, 8 x IEC 60320 C13 - Sine Wave - 12 x Battery/Surge Outlet
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Provides temporary battery power when the utility power is out.- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 5.50 minute at full load
- 2.20 kVA load capacity provides sufficient backup during power failures
- 1.98 kW load capacity - backup power for your valuable electronics
Technical Specifications
Interfaces/Ports
| Network (RJ-45) | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
Physical Characteristics
| Weight (Approximate) | 42.31 kg |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 480 mm |
| Depth | 683 mm |
Technical Information
| Application/Usage | Server |
| Router | |
| POS Terminal | |
| Switch | |
| Network Hub | |
| Receptacle Type | IEC Jumper |
| IEC 60320 C19 | |
| IEC 60320 C13 | |
| Number of Battery & Surge Outlets | 12 |
| Transfer Time | 10 ms |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 1 x IEC 60320 C19 | |
| 3 x IEC Jumper |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| Waveform Type | Sine Wave |
| Input Voltage Range | 160 V AC - 286 V AC |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT2200RMI2UC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2.2kVA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SMT |
| Brand Name | APC by Schneider Electric |
