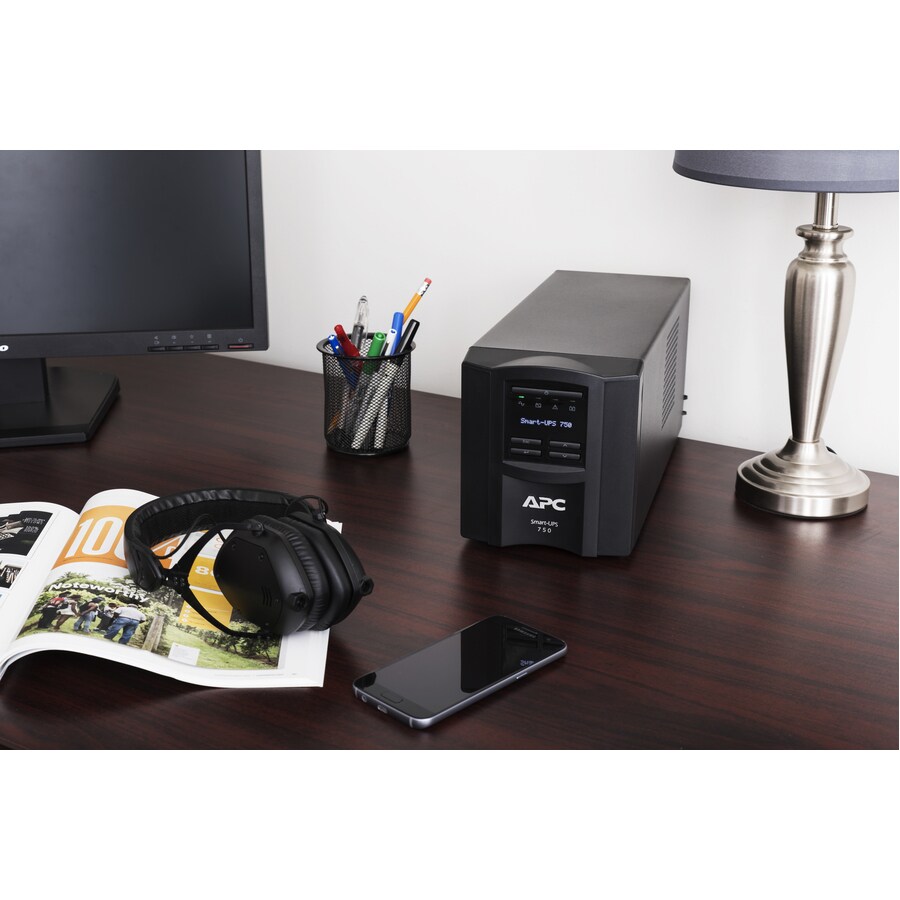

APC Smart-UPS 750VA LCD 230V with SmartC
APC Smart-UPS 750VA LCD 230V with SmartC
Product Overview
APC by Schneider Electric Smart-UPS Line-interactive UPS - 750 VA/500 W - Tower - 3 Hour Recharge - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Sine Wave - 8 x Battery/Surge Outlet
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
- Experience higher efficiency with lower energy cost
- 750 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 500 W load capacity
Technical Specifications
Network (RJ-45) | Yes |
Environmentally Friendly | Yes |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Typical Battery Recharge Time | 3 Hour |
Weight (Approximate) | 13.18 kg |
Height | 157 mm |
Width | 138 mm |
Depth | 358 mm |
Product Color | Black |
Color Family | Black |
Application/Usage | Switch |
Network Device | |
Network Hub | |
POS Terminal | |
Router | |
Server | |
Storage Device | |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC Jumper |
IEC 60320 C13 | |
Number of Battery & Surge Outlets | 8 |
Transfer Time | 10 ms |
Receptacle Detail | 6 x IEC 60320 C13 |
2 x IEC Jumper |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Waveform Type | Sine Wave |
Input Voltage Range | 160 V AC - 280 V AC |
Load Capacity (VA) | 750 VA |
Load Capacity (Watt) | 500 W |
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMT750IC |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS 750VA LCD 230V with SmartConnect |
Product Line | Smart-UPS |
Product Series | SMT |
Brand Name | APC by Schneider Electric |
