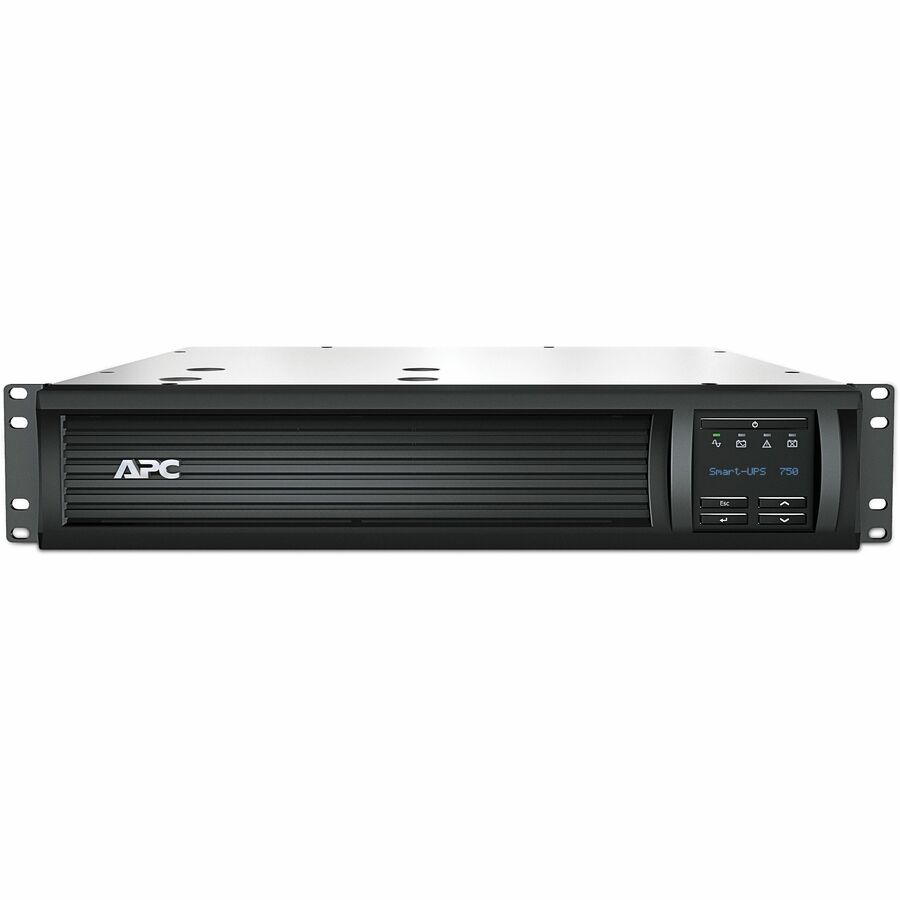

APC Smart-UPS 750VA LCD RM 2U 230V
APC Smart-UPS 750VA LCD RM 2U 230V
Product Overview
APC by Schneider Electric Smart-UPS SMT750RMI2U Line-interactive UPS - 750 VA/500 W - 2U Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 230 V Input - 230 V AC Output - 2 x IEC Jumper, 4 x IEC 320-C13 - Serial Port - USB
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.- Works adequately in situations where the supply is prone to sags and surges
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 750 VA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 500 W load capacity
Technical Specifications
Interfaces/Ports
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
Power Description
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
Technical Information
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 320-C14 |
| Receptacle Detail | 2 x IEC Jumper |
| 4 x IEC 320-C13 |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750RMI2U_ROHS_DECLARATION&p_FileName=SMT750RMI2UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035394&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035394&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) |
Battery Information
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMT750RMI2U |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | SMT750RMI2U |
| Product Name | Smart-UPS 750VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
Physical Characteristics
| Weight (Approximate) | 17.27 kg |
| Rack Height | 2U |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 406 mm |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
