APC Smart-UPS Lithium Ion Short Depth
APC Smart-UPS Lithium Ion Short Depth
Product Overview

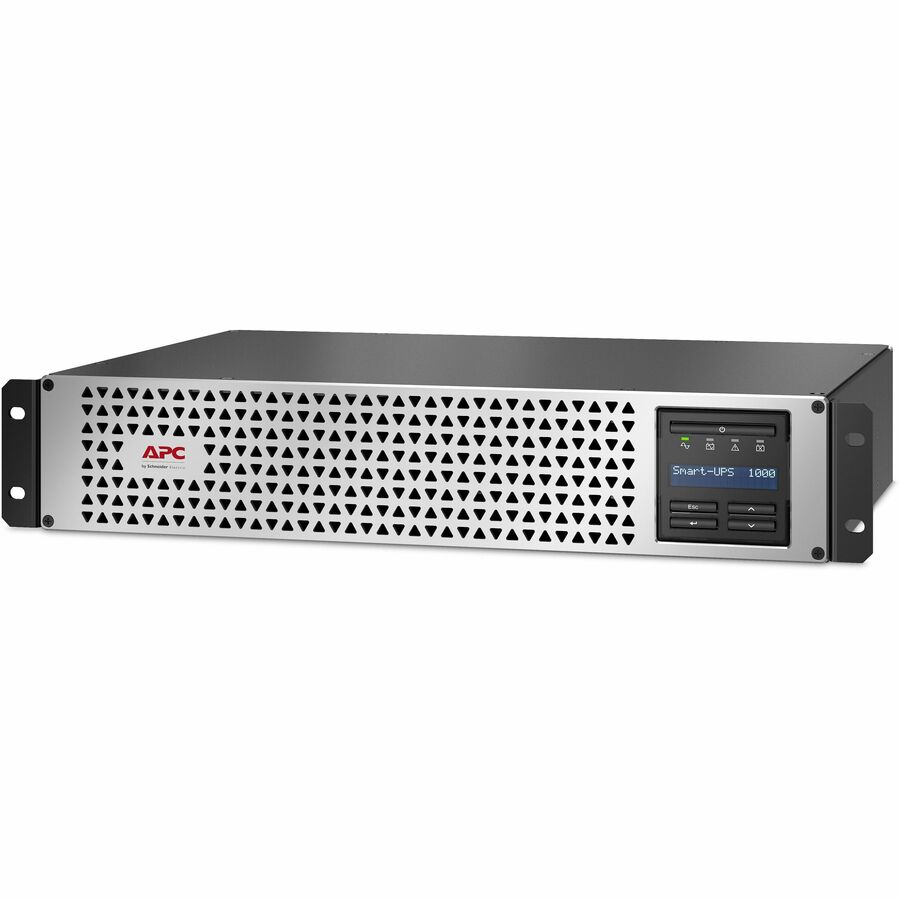

APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6 IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 8 minute at full load
- 1 kVA load capacity - work without any interruption during power outages
- 800 W load capacity - backup power for your valuable electronics
Technical Specifications
Controls/Indicators
Status Indicators |
LED Status Indicators: |
Interfaces/Ports
Network (RJ-45) | Yes |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Management
Network Management | SmartConnect |
Alarm | Configurable Delay |
Low Battery | |
On Battery |
Environmental Conditions
Thermal Dissipation | 70 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3.05 km |
Maximum Storage Elevation | 7.62 km |
Sound Emission (A-Weighted) | 41 dB(A) |
Battery Information
Battery Chemistry | Lithium Ion (Li-Ion) |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 19 Minute |
Backup/Run Time (Full Load) | 8 Minute |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 3 Hour |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMTL1000RMI2UC |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS 1000VA Rach-mountable UPS |
Product Line | Smart-UPS |
Product Series | SMT |
Brand Name | APC by Schneider Electric |
Physical Characteristics
Weight (Approximate) | 16.30 kg |
Rack Height | 2U |
Height | 86 mm |
Width | 438 mm |
Depth | 318 mm |
Product Color | Black |
Silver | |
Color Family | Dual Colour |
Mounting Preference | Lower |
Power Description
Input Voltage | 230 V |
Output Voltage | 230 V AC |
Surge Energy Rating | 680 J |
Waveform Type | Sine Wave |
Input Voltage Range | 160 V AC - 280 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
Load Capacity (VA) | 1 kVA |
Load Capacity (Watt) | 800 W |
Miscellaneous
Environmentally Friendly | Yes |
Mercury Free | Yes |
Green Premium | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1000RMI2UC_ROHS_DECLARATION&p_FileName=SMTL1000RMI2UCKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301634&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301634&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
REACH free of SVHC | No |
WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Technical Information
Application/Usage | Router |
Rack Server | |
POS Terminal | |
Network Hub | |
Network Device | |
Switch | |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | IEC Jumper |
IEC 60320 C13 | |
AVR | Yes |
Number of Battery & Surge Outlets | 6 |
Transfer Time | 6 ms |
Receptacle Detail | 6 x IEC 60320 C13 |
Price Trend
Current Price
AUD 3,025.00
