APC Smart-UPS Lithium Ion Short Depth

APC Smart-UPS Lithium Ion Short Depth

APC Smart-UPS Lithium Ion Short Depth

Product Overview

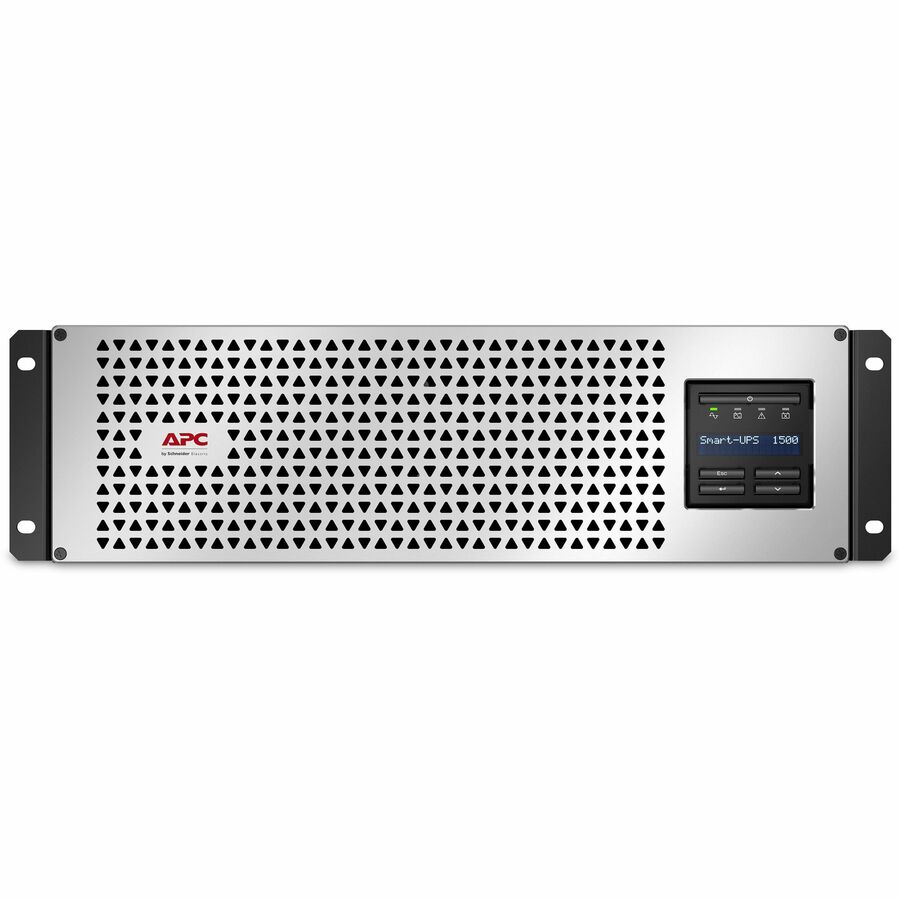

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
  • Experience higher efficiency with lower energy cost
  • Up to 5.10 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1.50 kVA load capacity - work without any interruption during power outages
  • Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity

Technical Specifications

Controls/Indicators
Status Indicators

    LED Status Indicators:

    • Unit Status
    • Power Status
Interfaces/Ports
Network (RJ-45)Yes
Serial PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Thermal Dissipation135 BTU/h
Maximum Operating Temperature40°C
Maximum Operating Elevation3 km
Maximum Storage Elevation7.50 km
Sound Emission (A-Weighted)45 dB(A)
Management
Network ManagementSmartConnect
AlarmConfigurable Delay
Low Battery
On Battery
Overload
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Hot SwappableYes
Battery Energy1080 kJ
Backup/Run Time (Half Load)13.60 Minute
Backup/Run Time (Full Load)5.10 Minute
Replaceable BatteryYes
Typical Battery Recharge Time3 Hour
Technical Information
Application/UsageBusiness
Security System
Critical System
IT Equipment
Switch
Storage Device
Server
Communication System
Router
POS Terminal
Network Hub
Network Device
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60320 C13
AVRYes
Number of Battery & Surge Outlets6
Transfer Time6 ms
Receptacle Detail6 x IEC 60320 C13
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberSMTL1500RMI3UC
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS Lithium Ion, Short Depth 1500VA, 230V With SmartConnect
Product LineSmart-UPS
Product SeriesSMT
Brand NameAPC by Schneider Electric
Physical Characteristics
Weight (Approximate)19.50 kg
Rack Height3U
Height131 mm
Width438 mm
Depth302 mm
Product ColorBlack
Silver
Color FamilyDual Colour
Power Description
Input Voltage230 V
Output Voltage230 V AC
Surge Energy Rating645 J
Waveform TypeSine Wave
Input Voltage Range160 V AC - 286 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)1.35 kW
Miscellaneous
Environmentally FriendlyYes
Mercury FreeYes
Green PremiumYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1500RMI3UC_ROHS_DECLARATION&p_FileName=SMTL1500RMI3UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301632&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301632&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHCNo
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Price Trend

Current Price
AUD 3,850.00
