Product Overview

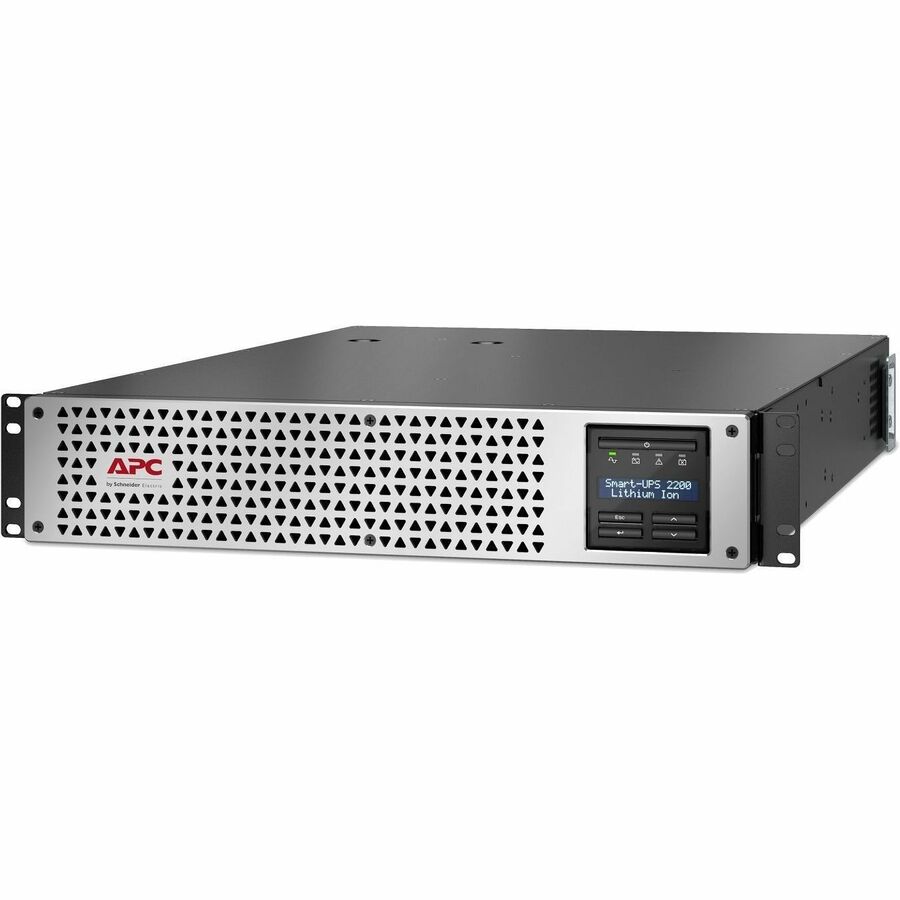

Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect, w/Network Management Card, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 7.45 minute at full load
- 2.20 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 1.98 kW load capacity
- Brochure
Technical Specifications
| Display | LCD |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Backup/Run Time (Full Load) | 7.45 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Sound Emission | 55 dB |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 7.62 km |
| Network Management | Network Management Card 3 (NMC3) |
| SmartConnect | |
| SmartSlot | |
| Alarm | Low Battery |
| On Battery |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Waveform Type | Sinusoidal |
| Input Voltage Range | 160 V AC - 286 V AC |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Features | Audible Alarm |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| AVR | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMTL2200RMI2UCNC |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2200VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Weight (Approximate) | 33.30 kg |
| Rack Height | 2U |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 685.8 mm |
| Product Color | Black |
| Silver | |
| Color Family | Dual Colour |
