Product Overview

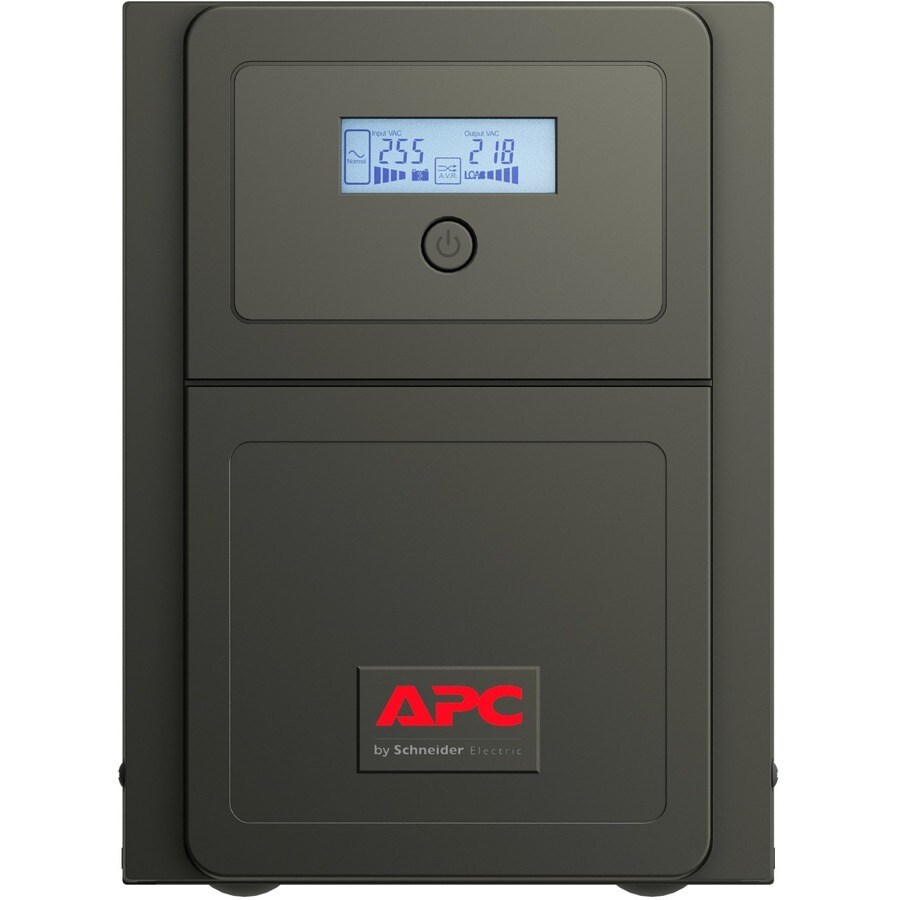

APC by Schneider Electric Easy UPS Line-interactive UPS - 1.50 kVA/1.05 kW - Tower - AVR - 4 Hour Recharge - 3.30 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Serial Port

UPS with the best value for money with backup battery & surge protection for electronics and computers

For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.

  • Experience higher efficiency with lower energy cost
  • Up to 3.30 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1.50 kVA load capacity - work without any interruption during power outages
  • Prevent critical data loss by staying powered during a blackout with up to 1.05 kW load capacity

Technical Specifications

Controls/Indicators
Status Indicators

    LCD Graphics Display:

    • Modes of operation
    • System parameters
    • Alarms

    LED Indicators:

    • Unit power conditions
    • Utility power conditions
Interfaces/Ports
Serial PortYes
USB (HID Compliant) PortYes
Management
AlarmOn Battery
Low Battery
Overload
Environmental Conditions
Maximum Operating Temperature40°C
Maximum Operating Elevation3 km
Maximum Storage Elevation3 km
Sound Emission (A-Weighted)45 dB(A)
Physical Characteristics
Weight (Approximate)17.80 kg
Height220 mm
Width160 mm
Depth410 mm
Color FamilyBlack
Technical Information
Application/UsageSOHO Office
Office
Electronic
Computer
Overload ProtectionYes
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60320 C13
AVRYes
Transfer Time2 ms
Receptacle Detail6 x IEC 60320 C13
Battery Information
Battery ChemistryLead Acid
Battery Capacity10000 mAh
Number of Batteries2
Backup/Run Time (Half Load)11.80 Minute
Backup/Run Time (Full Load)3.30 Minute
Battery CharacteristicsMaintenance-free, Sealed, Leak-proof
Typical Battery Recharge Time4 Hour
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberSMV1500CAI
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameEasy UPS 1.5kVA Tower UPS
Product LineEasy UPS
Brand NameAPC by Schneider Electric
Power Description
Input Voltage230 V AC
Output Voltage230 V AC
Waveform TypeSine Wave
Input Voltage Range160 V AC - 295 V AC
Output Frequency60 Hz
Input Frequency65 Hz
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)1.05 kW
