EASY UPS SMV 2000VA 230V WITH
EASY UPS SMV 2000VA 230V WITH
Product Overview
APC by Schneider Electric Easy UPS Line-interactive UPS - 2 kVA/1.40 kW - Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Serial Port
UPS with the best value for money with backup battery & surge protection for electronics and computers
For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 3.60 minute at full load
- 2 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 1.40 kW load capacity
Technical Specifications
| Status Indicators |
LCD Graphics Display: LED Indicators: |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Alarm | On Battery |
| Low Battery | |
| Overload |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 3 km |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Weight (Approximate) | 23.50 kg |
| Height | 240 mm |
| Width | 180 mm |
| Depth | 455 mm |
| Color Family | Black |
| Application/Usage | Computer |
| SOHO Office | |
| Office | |
| Electronic | |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Transfer Time | 2 ms |

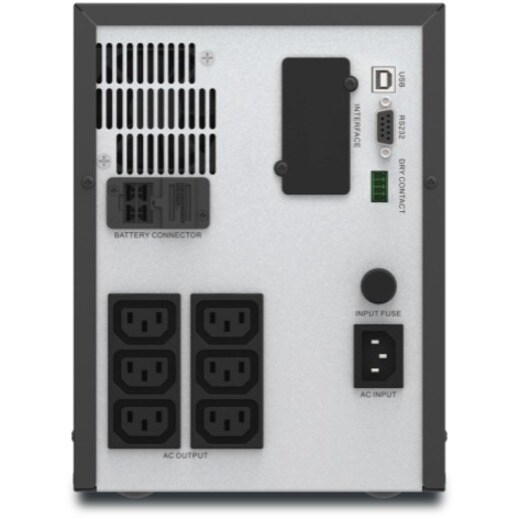

| Receptacle Detail | 6 x IEC 60320 C13 |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SMV2000CAI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS 2kVA Tower UPS |
| Product Line | Easy UPS |
| Brand Name | APC by Schneider Electric |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 12.10 Minute |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Input Voltage Range | 157 V AC - 303 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 65 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.40 kW |
