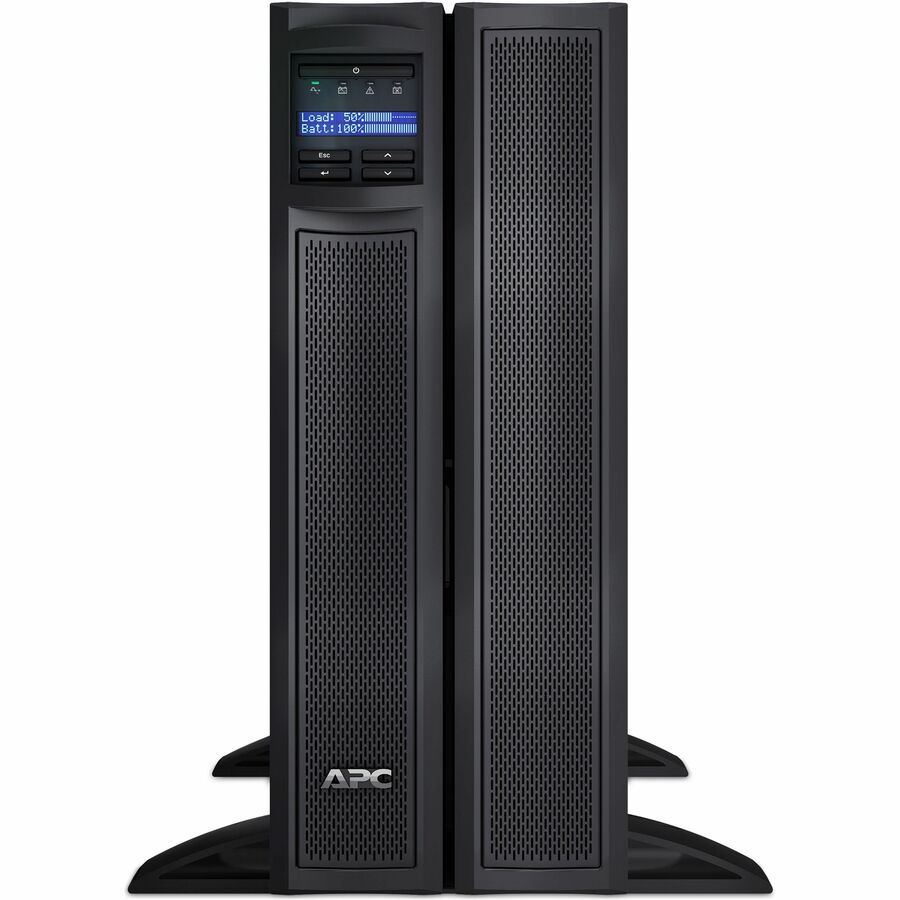

APC Smart-UPS X 3000VA Short Depth Tower

APC Smart-UPS X 3000VA Short Depth Tower

APC Smart-UPS X 3000VA Short Depth Tower

Product Overview

APC by Schneider Electric Smart-UPS Line-interactive UPS - 3 kVA/2.70 kW - 4U Rack/Tower - 3 Hour Recharge - 6 Minute Stand-by - 208 V, 230 V Input - 230 V AC Output - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - Serial Port

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 6 minute at full load
  • 3 kVA load capacity - work without any interruption during power outages
  • 2.70 kW load capacity - backup power for your valuable electronics

Technical Specifications

Interfaces/Ports
Serial PortYes
Management
Network ManagementSNMP/HTTP Remote Monitoring
AlarmLow Battery
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)18 Minute
Backup/Run Time (Full Load)6 Minute
Battery CharacteristicsMaintenance-free
Typical Battery Recharge Time3 Hour
Power Description
Input Voltage208 V
230 V
Output Voltage230 V AC
Surge Energy Rating645 J
Waveform TypeSine Wave
Load Capacity (VA)3 kVA
Load Capacity (Watt)2.70 kW
Miscellaneous
Package Contents
  • Smart-UPS 3000VA Tower/Rack Mountable UPS
  • CD with Software
  • Rack Mounting Support Rails
  • Smart UPS Signalling RS-232 Cable
  • Temperature Probe
  • User Manual
  • Web/SNMP Management Card
Certifications & Standards
    • C-tick
    • CE
    • CSA
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • EN 60950
    • FCC Part 15 Class A
    • GOST
    • IRAM
    • UL 1778
    • VDE
    • UL 1449
Environmentally FriendlyYes
Mercury FreeYes
Green PremiumYes
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVNC_ROHS_DECLARATION&p_FileName=SMX3000HVNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166978&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166978&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHCNo
California Proposition 65 Warning"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberSMX3000HVNC
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS 3000VA Tower/Rack Mountable UPS
Product LineSmart-UPS
Product SeriesSMX
Brand NameAPC by Schneider Electric
Physical Characteristics
Weight (Approximate)38.64 kg
Rack Height4U
Height432 mm
Width178 mm
Depth483 mm
Product ColorBlack
Color FamilyBlack
Mounting LocationFront
Mounting PreferenceLower
Technical Information
Emergency Power OFFYes
Protection TypeAC Noise
Surge
Plug/Connector TypeSCHUKO CEE 7 EU1-16P
British BS1363A
IEC 60320 C20
Cord Length2.44 m
Receptacle TypeSchuko CEE 7/EU1-16P
Receptacle Detail2 x IEC Jumper
8 x IEC 320-C13
2 x IEC 320-C19
