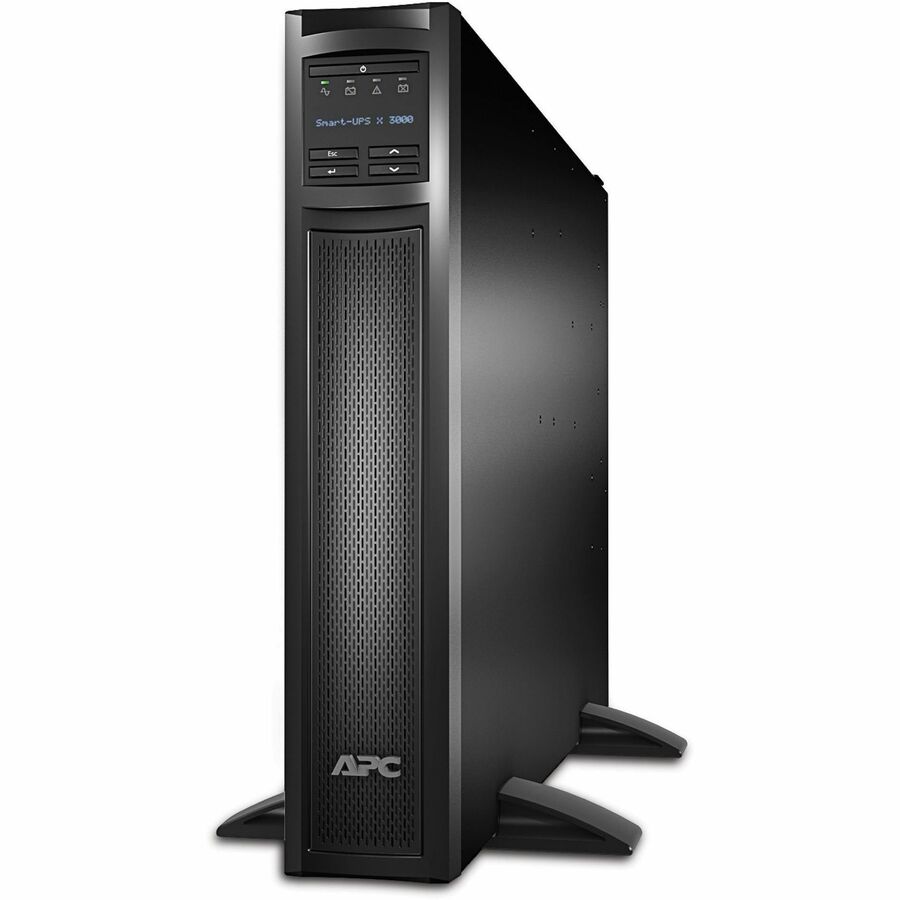

Product Overview
APC by Schneider Electric Smart-UPS SMX3000RMHV2U Line-interactive UPS - 3 kVA/2.70 kW - 2U Rack/Tower - 3 Hour Recharge - 6 Minute Stand-by - 208 V, 230 V Input - 230 V AC Output - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - Serial Port - USB
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.- Works adequately in situations where the supply is prone to sags and surges
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
Technical Specifications
Interfaces/Ports
USB | Yes |
Serial Port | Yes |
Total Number of Expansion Slots | 1 |
Power Description
Input Voltage | 208 V |
230 V | |
Output Voltage | 230 V AC |
Load Capacity (VA) | 3 kVA |
Load Capacity (Watt) | 2.70 kW |
Battery Information
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 18 Minute |
Backup/Run Time (Full Load) | 6 Minute |
Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
Typical Battery Recharge Time | 3 Hour |
Miscellaneous
Package Contents |
|
Certifications & Standards |
|
Environmentally Friendly | Yes |
Mercury Free | Yes |
Green Premium | Yes |
Optimized Energy Efficiency | Yes |
Product Take Back Program | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMHV2U_ROHS_DECLARATION&p_FileName=SMX3000RMHV2UKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035426&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035426&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
REACH free of SVHC | No |
California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Physical Characteristics
Weight (Approximate) | 37.32 kg |
Rack Height | 2U |
Height | 85 mm |
Width | 432 mm |
Depth | 667 mm |
Color Family | Black |
Mounting Location | Front |
Mounting Preference | Lower |
General Information
Product Type | Line-interactive UPS |
Manufacturer Part Number | SMX3000RMHV2U |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Model | SMX3000RMHV2U |
Product Name | Smart-UPS 3000 VA Tower/Rack Mountable UPS |
Product Line | Smart-UPS |
Product Series | SMX |
Brand Name | APC by Schneider Electric |
Technical Information
Emergency Power OFF | Yes |
Plug/Connector Type | British BS1363A |
SCHUKO CEE 7 EU1-16P | |
IEC 60320 C20 | |
Cord Length | 1.83 m |
Receptacle Type | Schuko CEE 7/EU1-16P |
Transfer Time | 4 ms |
Receptacle Detail | 1 x IEC 320-C19 |
2 x IEC Jumper | |
8 x IEC 320-C13 |
