1Ph 60kA 1 Mode DIN Modular Surge Di
1Ph 60kA 1 Mode DIN Modular Surge Di
Product Overview

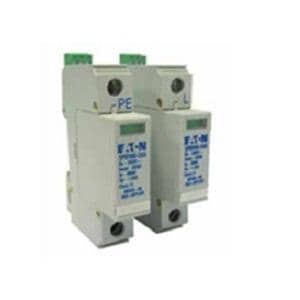

Eaton SPDV60-300 Surge Suppressor/Protector - 2130 J - 250 V AC - Input250 V AC Output - 60 kA
The SPDI range of DIN surge diverters provide the ultimate solution for surge protection in single & multi-phase systems. The units are housed in a genuine DIN43880 profile enclosure, enabling them to be easily included in new designs or retrofitted into existing switchboards. SPDi surge diverters can be installed as point-of-entry or sub-board protection & are connected in parallel with the power circuit via separate protection HRC fuses. The SPDi utilises state-of-the-art MOV technology featuring embedded thermal fusing.
- Protect your electronic devices, home entertainment system and your appliances from serious power surges
- Give your devices maximum protection with 2130 J energy rating
Technical Specifications
| Weight (Approximate) | 100 g |
| Height | 97 mm |
| Width | 18 mm |
| Depth | 65 mm |
| Input Voltage | 250 V AC |
| Output Voltage | 250 V AC |
| Surge Energy Rating | 2130 J |
| Maximum Surge Current | 60 kA |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | SPDV60-300 |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | SPDV60-300 |
| Product Name | SPDI Surge Suppressor |
| Product Series | SPDI |
| Brand Name | Eaton |
