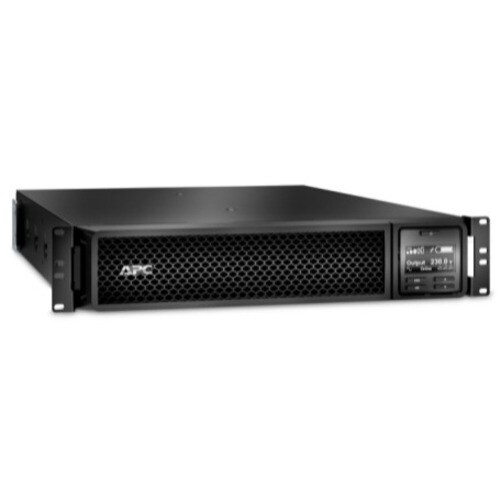

APC Smart-UPS SRT 1000VA RM 230V
APC Smart-UPS SRT 1000VA RM 230V
Product Overview
APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1 kVA/1 kW - 2U Rack-mountable - 3 Hour Recharge - 8.40 Minute Stand-by - 230 V AC Input - 230 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13 - Sine Wave - Serial Port - 12 x Battery/Surge Outlet
Smart-UPS On-Line
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- Keep your sensitive devices powered with a backup of up to 8.40 minute at full load
- 1 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1 kW load capacity
Technical Specifications
Status Indicators | LCD Graphics Screen |
Environmentally Friendly | Yes |
Network (RJ-45) | Yes |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Thermal Dissipation | 317 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Maximum Storage Elevation | 15 km |
Sound Emission (A-Weighted) | 50 dB(A) |
Battery Chemistry | Lead Acid |
Number of Batteries | 1 |
Backup/Run Time (Half Load) | 21.10 Minute |
Backup/Run Time (Full Load) | 8.40 Minute |
Battery Characteristics | Maintenance-free, Sealed |
Replaceable Battery | Yes |
Typical Battery Recharge Time | 3 Hour |
Input Voltage | 230 V AC |
Output Voltage | 240 V AC |
230 V AC | |
Surge Energy Rating | 432 J |
Waveform Type | Sine Wave |
Input Voltage Range | 50 V AC - 150 V AC |
Output Frequency | 60 Hz |
Input Frequency | 70 Hz |
Load Capacity (VA) | 1 kVA |
Load Capacity (Watt) | 1 kW |
Weight (Approximate) | 21 kg |
Rack Height | 2U |
Height | 85 mm |
Width | 432 mm |
Depth | 505 mm |
Product Color | Black |
Color Family | Black |
Product Type | Double Conversion Online UPS |
Manufacturer Part Number | SRT1000RMXLI |
Manufacturer Website Address | http://www.schneider-electric.com.au |
Manufacturer | Schneider Electric SA |
Product Name | Smart-UPS 1KVA Tower/Rack Convertible UPS |
Product Line | Smart-UPS |
Product Series | SRT |
Brand Name | APC by Schneider Electric |
Application/Usage | Voice/Data Network |
Server | |
Medical | |
IT Equipment | |
Industry | |
Computer | |
Plug/Connector Type | SCHUKO CEE 7 EU1-16P |
IEC 60320 C14 | |
British BS1363A | |
Receptacle Type | IEC 60320 C13 |
Number of Battery & Surge Outlets | 12 |
Transfer Time | 0 ns |
Receptacle Detail | 6 x IEC 60320 C13 |
