APC Smart-UPS SRT 1000VA RM 230V Network

APC Smart-UPS SRT 1000VA RM 230V Network

APC Smart-UPS SRT 1000VA RM 230V Network

Product Overview

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 1 kVA/1 kW - 2U Tower/Rack Convertible - 3 Hour Recharge - 8.40 Minute Stand-by - 230 V AC Input - 220 V AC Output - 6 x IEC 60320 C13 - Serial Port

Smart-UPS On-Line

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

  • Up to 8.40 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1 kVA load capacity - work without any interruption during power outages
  • 1 kW load capacity - backup power for your valuable electronics

Technical Specifications

Controls/Indicators
Status Indicators
    • LCD Graphics Screen
    • Audible Alarm
Miscellaneous
Environmentally FriendlyYes
Interfaces/Ports
Network (RJ-45)Yes
Serial PortYes
EPO PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Thermal Dissipation317 BTU/h
Maximum Operating Temperature40°C
Maximum Operating Elevation3 km
Maximum Storage Elevation15 km
Sound Emission (A-Weighted)50 dB(A)
Physical Characteristics
Weight (Approximate)21 kg
Rack Height2U
Height85 mm
Width432 mm
Depth505 mm
Color FamilyBlack
Technical Information
Application/UsageServer
Network
IT Equipment
Industry
Computer
Overload ProtectionYes
Plug/Connector TypeSCHUKO CEE 7 EU1-16P
IEC 60320 C14
British BS1363A
Receptacle TypeIEC 60320 C13

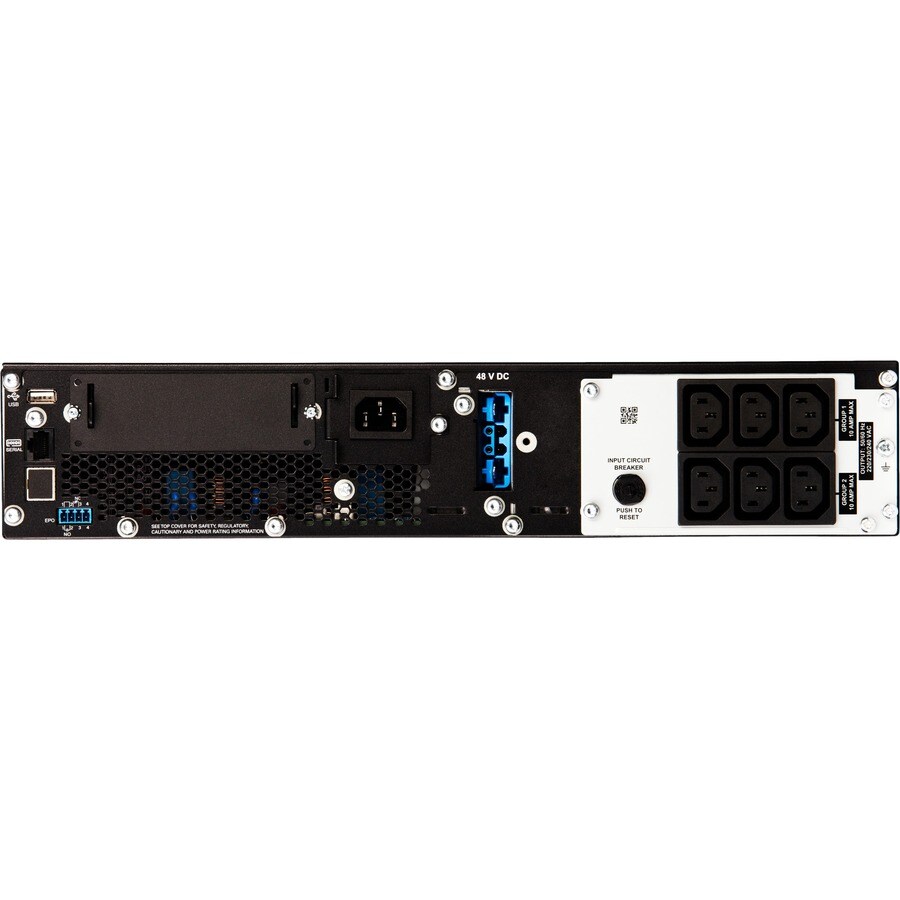

Receptacle Detail6 x IEC 60320 C13
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRT1000RMXLI-NC
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS 1KVA Tower/Rack Convertible UPS
Product LineSmart-UPS
Product SeriesSRT
Brand NameAPC by Schneider Electric
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Battery Size48V
Number of Batteries1
Backup/Run Time (Half Load)21.10 Minute
Backup/Run Time (Full Load)8.40 Minute
Battery CharacteristicsMaintenance-free, Sealed, Leak-proof
Replaceable BatteryYes
DC System Voltage48 V DC
Typical Battery Recharge Time3 Hour
Power Description
Input Voltage230 V AC
Output Voltage220 V AC
230 V AC
240 V AC
Surge Energy Rating432 J
Waveform TypePure Sine Wave
Output Frequency60 Hz
Input Frequency70 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)1 kW
