APC SMART-UPS SRT 1000VA 230 V NO
APC SMART-UPS SRT 1000VA 230 V NO
Product Overview

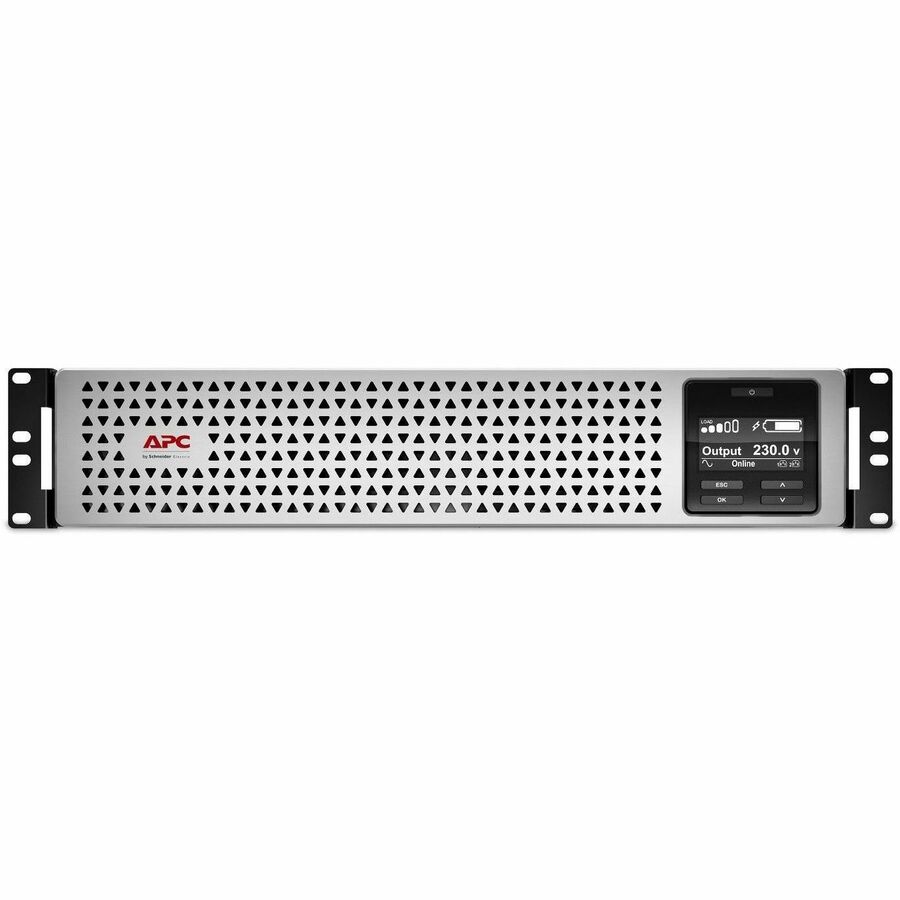

APC by Schneider Electric Smart-UPS On-Line Double Conversion Online UPS - 1 kVA/900 W - 2U Tower/Rack Convertible - 230 V AC, 120 V AC Input - 220 V AC Output - 8 x IEC 60320 C13 - Pure Sine Wave - Serial Port - USB
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
- 1 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 900 W load capacity
Technical Specifications
| Battery Characteristics | External Battery System |
| Network Management | SmartSlot |
| Additional Warranty Information | 5 year repair or replace |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Thermal Dissipation | 400 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| China Restriction of Hazardous Substances (China RoHS) |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 220 V AC |
| 240 V AC | |
| 230 V AC | |
| Surge Energy Rating | 340 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 50 V AC - 150 V AC |
| 80 V AC - 150 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Weight (Approximate) | 17.51 kg |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 590 mm |
| Product Color | Black |
| Color Family | Black |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT1000UXILI |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS On-Line 1000VA Tower/rack Convertible UPS |
| Product Line | Smart-UPS On-Line |
| Brand Name | APC by Schneider Electric |
| Application/Usage | IT |
| Light Industrial Application | |
| Hyperconverged Infrastructure (HCI) | |
| Electronic | |
| Voice/Data Network | |
| Virtual Machine | |
| Storage | |
| Server | |
| Network | |
| Medical Laboratory | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
