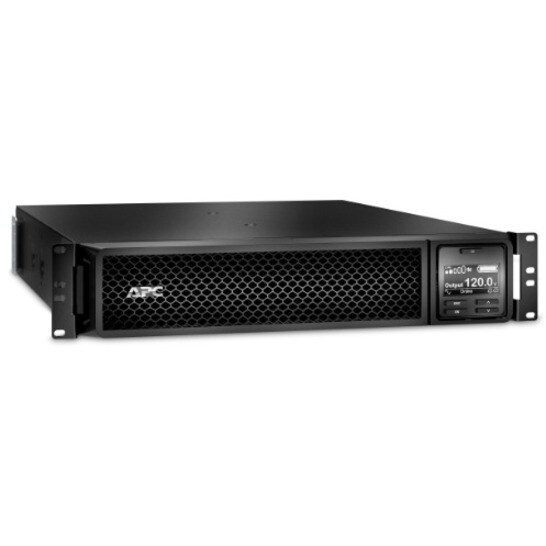

APC SMART-UPS SRT 2200VA RM

APC SMART-UPS SRT 2200VA RM

APC SMART-UPS SRT 2200VA RM

Product Overview

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 2.20 kVA/1.80 kW - 2U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - 1 x NEMA L5-20R, 6 x NEMA 5-20R - Sine Wave - 7 x Battery/Surge Outlet - SmartSlot

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

  • 2.20 kVA load capacity provides sufficient backup during power failures
  • 1.80 kW load capacity - backup power for your valuable electronics

Technical Specifications

Controls/Indicators
Status IndicatorsLCD Display
Interfaces/Ports
EPO PortYes
Management
Network ManagementSmartSlot
Environmental Conditions
Thermal Dissipation535 BTU/h
Maximum Operating Temperature40°C
Maximum Operating Elevation3.05 km
Maximum Storage Elevation15.24 km
Sound Emission (A-Weighted)55 dB(A)
Power Description
Input Voltage120 V
Output Voltage120 V AC
Waveform TypeSine Wave
Input Frequency70 Hz
Load Capacity (VA)2.20 kVA
Load Capacity (Watt)1.80 kW
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRT2200RMXLA
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS SRT 2200VA RM 120V
Product LineSmart-UPS
Brand NameAPC by Schneider Electric
Battery Information
Battery Life5 Year
Battery ChemistryLead Acid
Hot SwappableYes
Battery Energy1101.6 kJ
Number of Batteries1
Replaceable BatteryYes
DC System Voltage72 V DC
Typical Battery Recharge Time3 Hour
Technical Information
Application/UsageNetwork Workstation
Server
Cord Length1.83 m
Receptacle TypeNEMA 5-20P
Number of Battery & Surge Outlets7
Receptacle Detail6 x NEMA 5-20R
1 x NEMA L5-20R
Physical Characteristics
Weight (Approximate)24.95 kg
Form FactorRack-mountable
Rack Height2U
Height85 mm
Width432 mm
Depth584 mm
Product ColorBlack
Color FamilyBlack
Mounting PreferenceLower
Miscellaneous
Mercury FreeYes
Energy StarYes
Green PremiumYes
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN
Energy Star URLhttps://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHCNo
California Proposition 65 Warning"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
